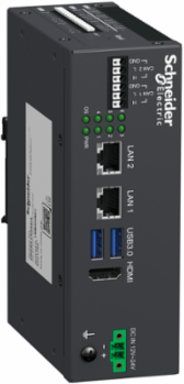

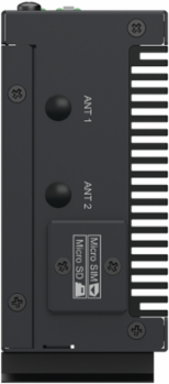

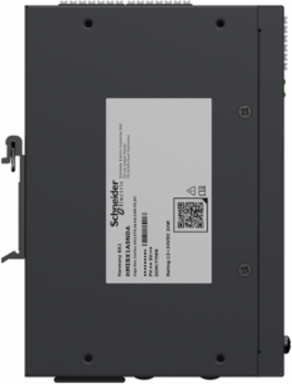

Schneider Electric HMIBX1A0NDA Essential Edge Controller, Harmony BX1, Ethernet, 2 serial, Linux, 24V DC
- MPN: HMIBX1A0NDA
- PPN: SCH-HMIBX1A0NDA
CAD
$1688.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Essential Edge Controller, Harmony BX1, Ethernet, 2 serial, Linux, 24V DC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, Singapore, Taiwan |
|---|
| Depth | 48 mm |
|---|
Communications & Management Attributes

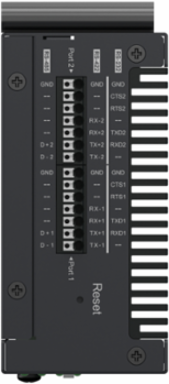

| Communication Port Protocol | RJ45, RS232/RS485/RS422 |
|---|
Complementary Attributes

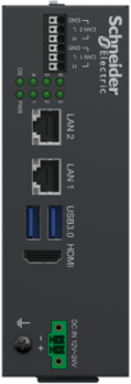

| Integrated Connection Type | HDMI with 1 on frontEthernet with 2 1 RJ45, SMSC LAN7500 on front, USB 3.0 type A with 2 on front, TPM connector Ver 2.0, TPM module by default on motherboard |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UKCA, RCM, cULus |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 12.82734369340924, 13 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 37 kg CO2 eq., 37.28101910800369 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 15 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 2 |
| Function Option | Advanced |
| Bearing Track Assembly Possible | false |
| Data Storage Equipment | 32 GB eMMC (soldered) |
| Device Short Name | essential edge controller |
| Display Resolution | 1920 x 1080 pixels at 60 Hz |

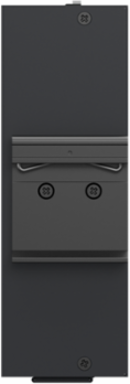

| Fixing Mode | 7.5 mm symmetrical DIN rail on rail |
| Graphic Card Present | false |
| Inrush Current | 6 A |
| Number Of Hw Interfaces Serial Rs23 | 2 |
| Number Of Hw Interfaces Serial Rs485 | 2 |
| Number Of Slots | 2 slot(s) for mini PCI Express |
| Other Memory Media Present | false |
| Power Losses | 9.36 kW |
| Processor Name | ARM Cortex-A53 quad core at 1.6 GHz NXP i.MX8M Plus |
| Product Or Component Type | essential edge controller |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | Yes |
| Software Package | EAE V 24.1 default |
| Sound Card Present | false |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 1 022 kg CO2 eq. |
| Vibration Resistance | 9.8 m/s² |
| Memory Capacity Hard Disc | 32 GB |
| With Optical Drive | false |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2102.4 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; France, FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; France, FR |

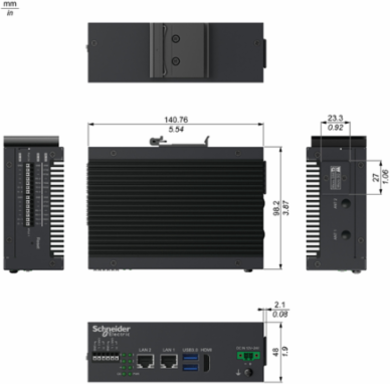

| Height Nominal | 140.76 mm |
| Maximum Ram Memory | 4 GB |
| Audio/Video Interface | HDMI 1.4 |
| Rack-assembly Possible | false |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | true |
| Wall Mounting/Direct Mounting Possible | false |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | EVSOLCG001EN |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 1.785661230906766, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.04284951435306673 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 970 kg CO2 eq., 969.9809420390852 |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | N |
| Device Type | HMI - Industrial PC |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2405013EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Product Kit Identifier | N |
| Customer Specific Configuration Possible | false |
| Dc Control Voltage | 24-24 V |
| Diskette Drive Present | false |
| Electromagnetic Compatibility | EN/IEC 61131-2 |
| Front Installation Possible | false |
| Hard Disk Storage Present | false |
| Number Of Hw Interfaces Industrial Ethernet | 2 |
| Number Of Hw Interfaces Serial Rs42 | 2 |
| Number Of Hw Interfaces Usb | 2 |
| Operating System | Linux Debian 12 |
| Power Consumption In W | 9.36 W |
| Processor Frequency | 1.6 GHz |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Harmony iPC |
| Shock Resistance | 147 m/s² |
| Software Version | v6.2-22 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Type Of Cooling | fanless |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Rail Mounting Possible | false |
| Pep Code | ENVPEP2405013EN |
| Pep Verification Date | 2024-07-19 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Taiwan, TW |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; France, FR |
| Recyclability Potential In % | 58 |
| Width Nominal | 98.2 mm |
| [Us] Rated Supply Voltage | 24 V DC |
| Io-link Master Present | false |
| Radio Standard Wi-fi 802.11 | false |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 1200 g |
| Take-back | No |
| Customs Code | 8571500150 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C, -20-70 °C, -20-70 °C |
|---|---|
| Take Back | No |
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Storage | -40-80 °C-40-80 °C |
| Environmental Disclosure | ENVPEP2405013EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-07-19 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ip Degree Of Protection | DIN rail:, IP20 |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 1021.917815585758 |
| Circularity Profile | ENVEOLI2405013EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2405013EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | essential edge controller |
|---|
| Range Of Product | Harmony iPC |
|---|
ETIM
| ETIM 8 | EC001413 |
|---|
| ETIM 9 | EC001413 |
|---|
Batteries & Runtime Attributes
| Removable Battery | USER_REPLACEABLEUser replaceable |
|---|
