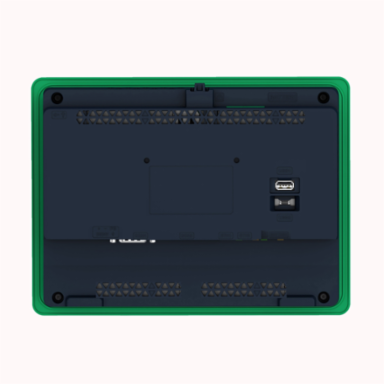

Schneider Electric HMIST6500 Harmony ST6 Touch Panel 10 Inch, 2COM, 2 Ethernet, 24V DC

MPN: HMIST6500
PPN: SCH-HMIST6500

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$2995.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

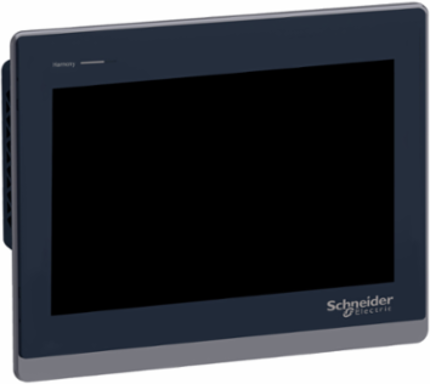

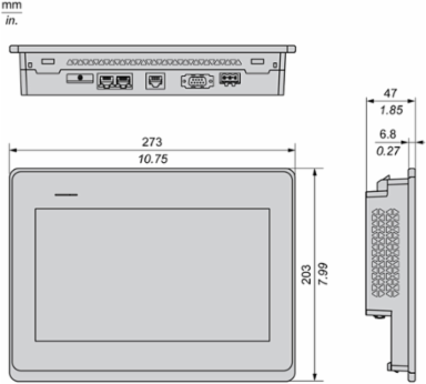

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Features

Featuring a crisp 1024 times 600 pixel WVGA resistive touchscreen with 16 million colors, this display gives operators an expansive, high-contrast canvas to monitor detailed process graphics. The spacious 10.1-inch widescreen layout reduces menu-diving, allowing plant personnel to comfortably read critical alarms, trending charts, and multi-variable system diagnostics at a glance.

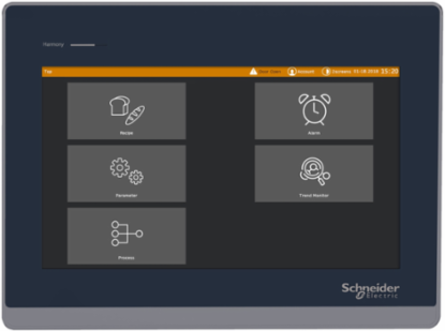

Fully optimized for Schneider's latest EcoStruxure configuration software, this terminal supports gesture-based navigation, smooth scrolling, and dynamic UI objects. This streamlined software integration cuts engineering design time by allowing automation developers to easily build intuitive, smartphone-like user experiences that lower operator training requirements and speed up on-site response times.
Outfitted with two independent 10/100 Base-T Ethernet ports, this graphic terminal enables secure IT/OT network segregation right at the machine level. This dual architecture allows automation engineers to dedicate one port to deterministic fieldbus communications (such as Modbus TCP/IP) while using the second port for upstream data collection, remote maintenance, or edge-to-cloud analytics.

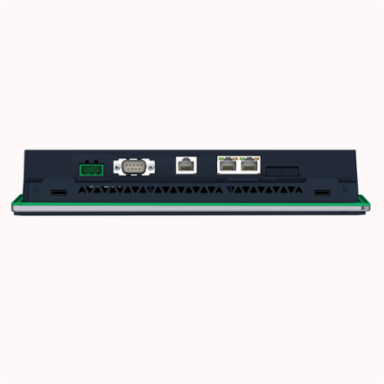

Equipped with both a 9-pin RS-232C (COM1) and an RJ45 RS-485 (COM2) serial port, the panel eliminates the need for expensive external protocol converters. It offers native driver support for mainstream industrial control brands, allowing seamless integration with both modern controllers and legacy warehouse hardware on a single automated line.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Indonesia, Singapore, United States

Depth	47 mm

Physical Attributes

Display Size	10 inch

Display Color	16 million colours

Complementary Attributes

Integrated Connection Type	1 COM1 serial link - 1 SUB-D 9-pin female - RS232C 2400...115200 bps)bottom1 COM2 serial link - female RJ45 - RS485 2400...115200 bps)back, COM2 serial link 2400...187500 bps)back, 1 USB 2.0 type Abottom, 1 USB 2.0 type micro B2 Ethernet

Important Information Attributes

Persona Type Ids	EU, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Character Font	ASCII, ASCII (European characters), Chinese (simplified Chinese), Japanese (ANK, Kanji), Katakana, Korean, Taiwanese (traditional Chinese)
Fixing Mode	by 4 screws 1.6...5 mm thick panel UL 61010-2-201, by 4 screws IEC 61131-2, by 4 screws IEC 61000-6-2
Product Brand	Schneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
Vibration Resistance	+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
Carbon Footprint Of The Distribution Phase [A4]	0.26553496571988244, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.6 kg CO2 eq., 0.572464250734574
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	903 kg CO2 eq., 903.2800000000002
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	HMI - Graphical display unit
Traceability	Yes
Average Life Duration	7 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1810005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Display Resolution	1024 x 600 pixels WSVGA
Electromagnetic Compatibility	electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
Front Material	aluminium
Inrush Current	30 A
Memory Description	1 GB device memory512 KB backup memory128 MB user data memory
Port Ethernet	10/100BASE
Processor Name	ARM Cortex-A8
Product Or Component Type	touch panel screen
Returnability	Yes
Software Version	v5.9.4
Sustainable Packaging	No
Touch Panel	single touch analogue resistive
With Schneider Logo	yes
X With Schneider Logo	yes
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide a HMI during 15 years and a 100% rate at 9W, based on below function:& 10- 7" Touchscreen panel.& 10- I/O connectors(USB and Ethernet) .& 10- IP20 (rear panel) & IP65(front panel) conforming to IEC 61131-2
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	1655.64
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US
Height Nominal	203 mm
[Us] Rated Supply Voltage	24 V DC +/- 20 %)
F-gas Free	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Halogen-free Status	Product contains halogen above thresholds
Package Weight(Lbs)	1.825 kg
Take-back	No
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	16755.2
Water Use (M3 Eq) Operational Energy Use [B6]	33.3802

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Downloadable Protocols	Modbus, Uni-TE, third party protocols
Local Signalling	status LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
Realtime Clock	built-in 0...50 °C, built-in 10...90 % RH
Certificate Agency	CSA, CE, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2.18856611165524, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	70 kg CO2 eq., 70.44025465230166
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	Yes
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	4
Without Single Use Plastic	No
Dangerous Goods Code	LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier	1
Function Option	Standard
Brightness	16 levels
Display Type	colour TFT LCD
Enclosure Material	PC
Immunity To Microbreaks	10 ms
Marking	CE
Number Of Pages	200 application pages
Power Consumption In W	12.6 W
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony ST6
Shock Resistance	147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Supply	external supply
Total Lifecycle Carbon Footprint	977 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Display Color	16 million colours
Pep Code	ENVPEP1810005EN
Pep Verification Date	2024-09-19
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	15
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %	29
Width Nominal	273 mm
Cut-out Dimensions	255 x 185 mm panel cut dimension
F-gas Usage Performance	Only air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	16755.2
Customs Code	8537109170

Environment Attributes Main

Ambient Air Temperature For Storage	-20-60 °C, -20-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	976.7468199804116
Circularity Profile	ENVEOLI1810005EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 IEC 61131-2 rear panel)IP65 IEC 61131-2 front panel)
Operating Altitude	6561.68 ft (2000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	10-90 % non-condensing
Pep Verification Date	2024-09-19
Psr Version	PSR-0005-ed2-2016 03 29

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
Silicon Free	No
Ambient Air Temperature For Operation	0-50 °C
Environmental Disclosure	ENVPEP1810005EN
Halogen Content Performance	Product contains halogen above thresholds
Nema Degree Of Protection	NEMA 4 front panel (indoor use)NEMA 13 front panel (in enclosure)
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1810005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
