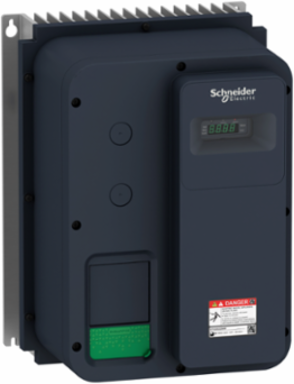

Schneider Electric ATV320U11M2W Altivar Machine Variable-Speed Drive 1.1kW 200-240V 1 Phase IP66
- MPN: ATV320U11M2W
- PPN: SCH-ATV320U11M2W
CAD
$935.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

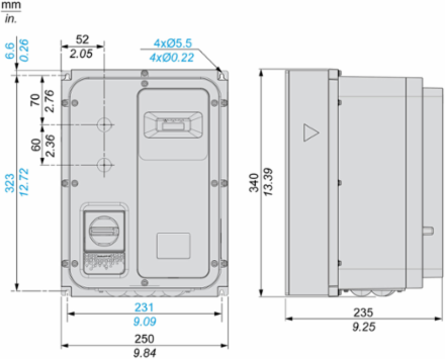

Altivar Machine Variable-Speed Drive 1.1kW 200-240V 1 Phase IP66
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth235.0 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial, CANopen
Complementary Attributes
- Maximum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2A, R2C resistive, cos phi = 1 5 A 30 V DCrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V ACrelay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
- Maximum Associated Fuse Rating
- 25.0 A
- Maximum Input Current Per Phase
- 13.7 A
- Maximum Output Voltage
- 240 V
Brake Chopper Integratedtrue
Maximum Horse Power Rating1.5 hp
Maximum Output Frequency0.599 kHz
Minimum Switching Currentrelay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points, flux vector control without sensor, standard, voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor - Energy Saving, voltage/frequency ratio, 2 points
- Linearity Error
- AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input, AQ1 +/- 0.3 % analog output
- Motor Slip Compensation
- automatic whatever the load, adjustable 0...300 %, not available in voltage/frequency ratio (2 or 5 points)
- Protection Type
- input phase breaks drive, overcurrent between output phases and earth drive, overheating protection drive, short-circuit between motor phases drive, thermal protection drive
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn, +/- 10 % of nominal slip 0.2 Tn to Tn
- Certificate Agency
- CE, ATEX, NOM, GOST, EAC, RCM, KC
- Environmental Class (During Storage)
- class 1C3 according to EN 60721-3, class 1S2 according to EN 60721-3
- Carbon Footprint Of The Distribution Phase [A4]
- 1.8121463923093866, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 5 kg CO2 eq., 5.409902823402456
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 900 kg CO2 eq., 900.0482708674406
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD Compacts
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1908004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1816
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2Yes
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- 1 Phase Low Current Possible
- false
- Apparent Power
- 2.8 kVA 240 V heavy duty)
- Base Load Current At High Overload
- 2.7 A
- Capacity Of Dc Link
- 1410 µF
- Design Of Frequency Changer
- U converter
- Encoder Protocol
- RS 422
- Housing Material
- plastic
- Maximum Associated Fuse Rating
- 25.0 A
- Method Of Access
- slave CANopen
- Mounting Mode
- wall mount
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Other
- 1.0
- Number Of Hw Interfaces Profinet
- 0.0
- Number Of Hw Interfaces Serial Rs42
- 0.0
- Number Of Hw Interfaces Serial Tty
- 0.0
- Number Of Output Phases
- 1
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Power Dissipation In W
- self-cooled 61 W 200 V 4 kHz
- Power Loss Static Current Independent
- 61 W
- Product Or Component Type
- variable speed drive
- Prospective Line Isc
- 1 kA
- Regulation Loop
- adjustable PID regulator
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Sampling Duration
- 2 ms AI1, AI2, AI3) - analog input2 ms AQ1) - analog output
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- true
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- true
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Synchronous Motor Control Profile
- vector control without sensor
- Transient Overtorque
- 170-200 % of nominal motor torque
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To adapt the speed and torque of synchronous, asynchronous motor to the machine's operating point for 4 kW for heavy duty electric motors for fluid management and industrial applications in IP65/UL type 1 conditions, at 380V to 500V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in "standby" phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the "Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1".
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2226.75
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 340 mm
- [Us] Rated Supply Voltage
- 200...240 V200...240 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 3.5 mm at 2...13 Hz
- Permitted Relative Humidity (During Storage)
- class 1K5 according to EN 60721-3
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- true
- Supporting Protocol For Tcp/Ip
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safely Limited Position (Slp)
- false
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Package Weight(Lbs)
- 9.882 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6voltage dips and interruptions immunity test conforming to IEC 61000-4-11
MarkingCE, ATEX, UL, CSA, EAC, RCM
Option Cardcommunication module, CANopen, communication module, EtherCAT, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
Refresh Timelogic input DI1...DI4)8 ms, relay output R1A, R1B, R1C)2 ms, relay output R2A, R2C)2 ms
Motor Power Kw 10 N Motor Power Kw1.1 kW
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to EN 60721-3, class 2S1 according to EN 60721-3
Carbon Footprint Of The End-of-life Phase [C1 To C4]8.205629747831514, 8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]283 kg CO2 eq., 282.9705703648645
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
4 Quadrant Operation Possibletrue
Application In Domestic And Commercial Area Permittedfalse
Braking To Standstillby DC injection
Computer Porttrue
Emc FilterClass C2 EMC filter integrated
Format Of The Driveenclosed
Line Current13.7 A 200 V heavy duty)11.5 A 240 V heavy duty)
Maximum Input Current Per Phase13.7 A
Motor Power Kw1.1 kW heavy duty
Network Frequency50-60 Hz
Number Of Hw Interfaces Industrial Ethernet0.0
Number Of Hw Interfaces Parallel0.0
Number Of Hw Interfaces Serial Rs230.0
Number Of Hw Interfaces Serial Rs4851.0
Number Of Hw Interfaces Usb0.0
Operating Element Presenttrue
Optical Interface Presentfalse
Phasesingle phase
Power Loss Per Device Current Dependent61 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationcomplex machines
Range Of ProductAltivar Machine ATV320
Relative Symmetric Mains Voltage Tolerance10 %
ReturnabilityYes
Software Versionv6.2.5-6
Supporting Protocol For Bacnetfalse
Supporting Protocol For Devicenettrue
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibustrue
Supporting Protocol For Profinet Iotrue
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Switching Frequency2...16 kHz adjustable4...16 kHz with derating factor
Total Lifecycle Carbon Footprint1 198 kg CO2 eq.
UpdatabilityUpgradeable through digital modules
With Safety Function Safe Programmable Logicfalse
Pep CodeENVPEP1908004EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %83
Width Nominal250 mm
Emc Limit Value (Complied)true
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)3.5 mm at 2...13 Hz
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Permitted Relative Humidity (During Transport)class 2K5 according to EN 60721-3
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
With Safety Function Safe Brake Management (Sbc/Sbt)false
With Safety Function Safe Operating Stop (Sos)false
With Safety Function Safe Speed Monitor (Ssm)false
With Safety Function Safe Torque Off (Sto)true
With Safety Function Safely Limited Speed (Sls)true
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C without derating, -10-40 °C without derating, -10-60 °C, -10-60 °C, -10-40 °C without derating, -10-40 °C without derating40-60 °C with derating factor
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1908004EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1908004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1198.4465201958485
Environmental DisclosureENVPEP1908004EN
Ip Degree Of ProtectionIP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- single phase
- Range Of Product
- Altivar Machine ATV320
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Type
- open collector DQ+ 0-1 kHz 30 V DC 100 mA, open collector DQ- 0-1 kHz 30 V DC 100 mA
- Analogue Output Number
- 1
- Discrete Output Number
- 3
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 1.1 kW
Relay Output Typeconfigurable relay logic R1A 1 NO 100000 cyclesconfigurable relay logic R1B 1 NC 100000 cycles, configurable relay logic R1C, configurable relay logic R2A 1 NO 100000 cycles, configurable relay logic R2C
Analogue Output Typesoftware-configurable current AQ1 0...20 mA 800 Ohm 10 bitssoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Maximum Output Frequency0.599 kHz
Nominal Output Current6.9 A
Surge Protection And Filtering Attributes
- Emc Filter
- Class C2 EMC filter integrated
Input Attributes
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bitsAI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Input Number
- 7
Discrete Input Logicpositive logic (source), negative logic (sink)
Analogue Input Number3
Number Of Input Phases1
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$935.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$935.28/ EA
Loading add to cart quantity...
