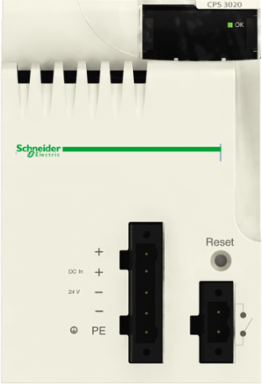

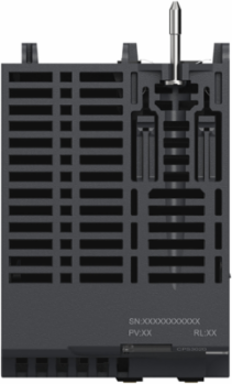

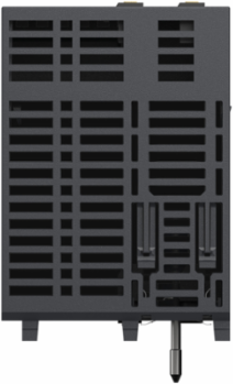

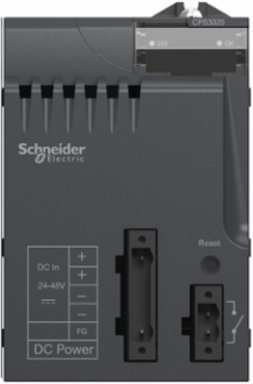

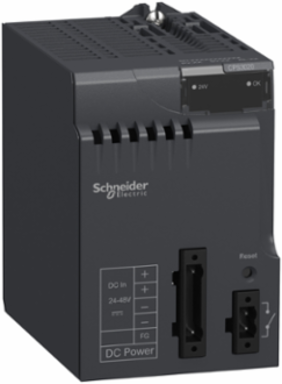

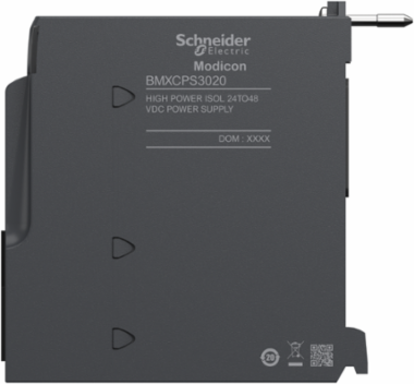

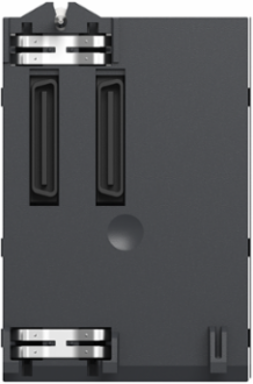

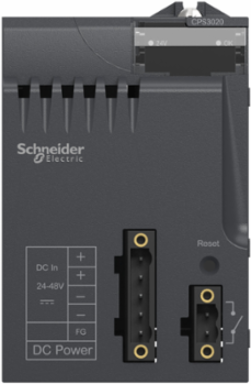

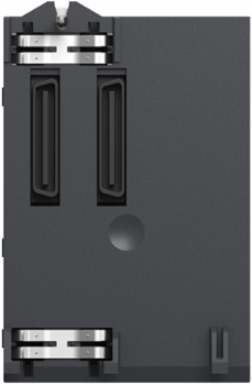

Schneider Electric BMXCPS3020 Modicon X80 Power Supply Module 24-48V DC 31.2W IP20

MPN: BMXCPS3020
PPN: SCH-BMXCPS3020
UNSPSC: 32151706

$1381.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.

Features

Internal fuse not accessible for primary circuit
Overload and overvoltage protection for secondary circuit
Short circuit protection for secondary circuit
Modularity and scalability
Robustness and reliability
IP20 protection for harshest environments
Wide range of operating temperature from 0°C to 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Canada, France, Indonesia, Singapore, United States

Weight	500 g

Complementary Attributes

Maximum Cable Distance Between Devices	10 m power supply cable copper 1.5 mm²15 m power supply cable copper 2.5 mm²

Maximum Power Dissipation In W	8.5 W

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current At Secondary Voltage	1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
Insulation Resistance	>= 10 MOhm primary/ground, >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary, >= 10 MOhm primary/secondary>= 10 MOhm primary/ground, >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
Secondary Power	15 W 3.3 V DC I/O module logic power supply, 31.2 W 24 V DC I/O module power supply and processor
Carbon Footprint Of The End Of Life Phase C1 To C4	0.6925204081632653, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	6 kg CO2 eq., 5.801734693877551
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2402022EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1949
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Control Type	RESET push-button cold restart
Immunity To Microbreaks	1 ms
It On Activation	0.2 A.s 24 V0.3 A.s 48 V
Primary Voltage	24...48 V isolated
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Software Version	v5.9.4
Supply Circuit Type	DC
Total Lifecycle Carbon Footprint	457 kg CO2 eq.
Database Version	2022-01
I²T On Activation	1 A².s 24 V3 A².s 48 V
Customs Code	8504409510
Packaging Weight In G	131
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	1

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength	1500 V primary/ground, 1500 V primary/secondary
Protection Type	internal fuse not accessible primary circuitoverload protection secondary circuit, 24 V sensor power supply, overvoltage protection secondary circuit, 24 V sensor power supply, short-circuit protection secondary circuit, 24 V sensor power supply
Carbon Footprint Of The Distribution Phase A4	0.0653826530612244, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.2 kg CO2 eq., 0.2432551020408163
Carbon Footprint Of The Use Phase B2 B3 B4 B6	451 kg CO2 eq., 450.6399999999999
Local Publishable Date	2026-07-27
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 connector 2 alarm relay1 connector 5 line supply, protective earth
Inrush Current	30 A 24 V60 A 48 V
Mtbf Reliability	4600000 H
Primary Voltage Limit	18...62.4 V
Product Or Component Type	power supply module
Range Of Product	Modicon X80
Shock Resistance	30 gn
Status Led	1 LED (Green) rack voltage OK
Sustainable Packaging	Yes
Vibration Resistance	3 gn
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	The power supply provides power to the modules on a M340 or M580 rack (main or drop) with a primary voltage of 100V to 240V AC , a secondary power of 31.2W at 24V DC and a maximum power dissipation of 8.5W.
Functional Unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	670.14

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	457.4428928571427
Circularity Profile	ENVEOLI2402022EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2402022EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Environmental Disclosure	ENVPEP2402022EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	not compatible with BMEXBP..02
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
