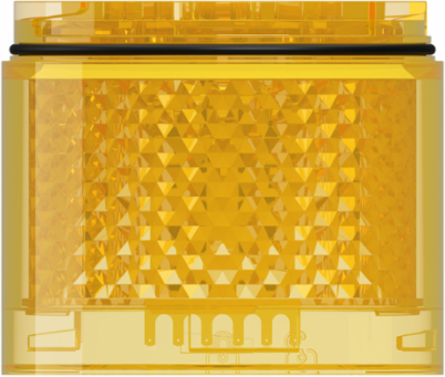

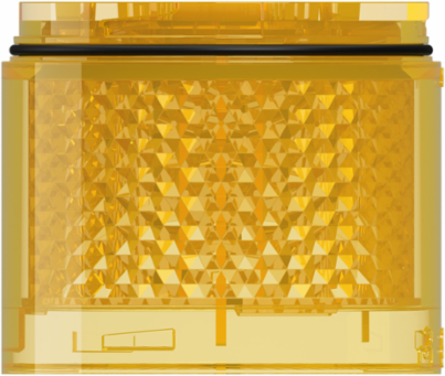

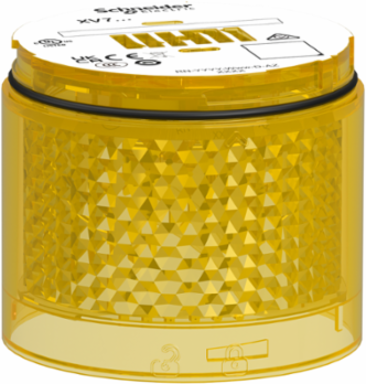

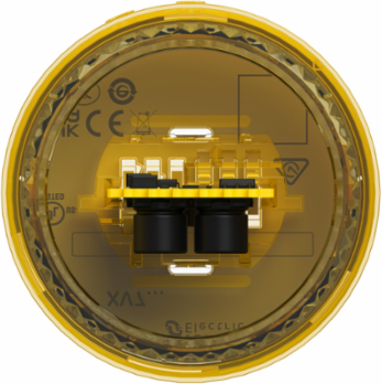

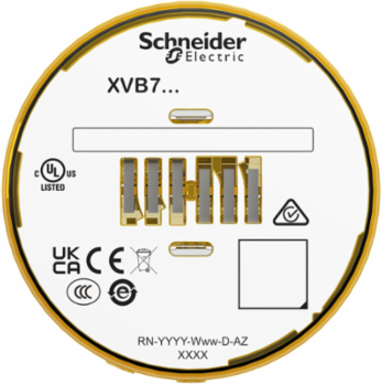

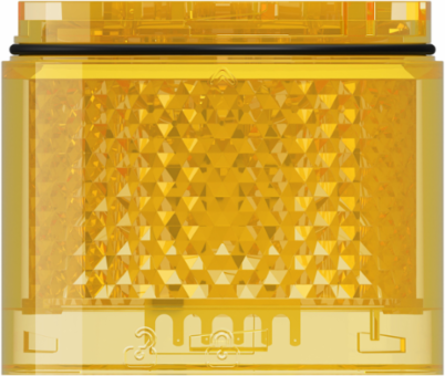

Schneider Electric XVB7C68 Light Module, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Flashing, Colored Lens
Schneider Electric XVB7C68 Light Module, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Flashing, Colored Lens
- MPN: XVB7C68
- PPN: SCH-XVB7C68
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$171.15/ EA
Description
Light Module, Harmony XVB7 Modular Tower Light, Yellow, Ø70mm, Flashing, Colored Lens
Specifications
Conformance Attributes
- Product Certifications
- cULus, CCC, RCM, UKCA, CE
StandardsUL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
- Ui Rated Insulation Voltage
- 50 V
Ue Rated Operational Voltage24 V AC/DC
Uimp Rated Impulse Withstand Voltage0.5 kV
Important Information Attributes
- Current Consumption
- 180 mA 24 V AC, 250 mA 24 V DC
- Signalling Type
- flashing, flashing
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.17164079736424612
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 2 kg CO2 eq., 2.0722504218272904
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Legacy Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2501029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2447
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Short Name
- XVB7
- Flashing Frequency
- 2 Hz
- Light Source
- LED, yellow
- Mounting Diameter
- 70 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVB7
- Service Life In Hours
- 50000 h
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 66 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Light Source 1 Light Block Color
- yellow
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- The major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
- Functional Unit Unit
- unit
- Reference Lifetime In Y2
- 10
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In 2
- 87
Device Compositionstandard lens, standard lens
Carbon Footprint Of The Distribution Phase A40.06008836087959548, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0009568531054885027, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B664 kg CO2 eq., 63.68600174441161
Local Publishable Date2026-03-26
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Electrical Shock Protection Classclass II
Inrush Current1 A
MaterialPC (polycarbonate)
Mounting Positionupright/inverted
Product Or Component Typelight module
ReturnabilityYes
Shock Resistance30 gn 6 ms) in operation
Sustainable PackagingNo
Vibration Resistance6 gn +/- 0.5 mm 10-500 Hz)in operation
Warranty In Months18
Pep CodeENVPEP2501029EN
Pep Verification Date2025-06-28
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G2172.3
Energy Consumption On Product Lifetime In Kwh131.4
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Offer Owner Code190786
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 65.99093817758823
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-60 °C
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionType 4/4X/12/13 indoor use only
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- light module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Indonesia, Philippines, United States
Downloads
