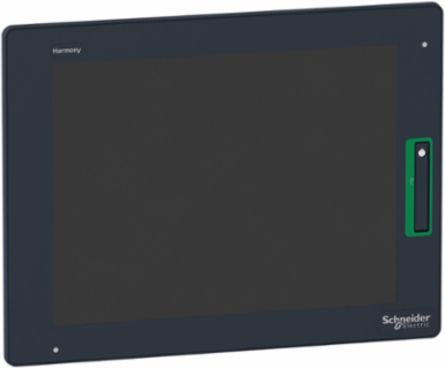

Schneider Electric HMIDT642FC Harmony GTU 12.1 Inch Touchscreen Display XGA, IP66, 3 kg
- MPN: HMIDT642FC
- PPN: SCH-HMIDT642FC
- UNSPSC: 43211506
CAD
$4784.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Harmony GTU touchscreen display from Schneider Electric features a vibrant 12.1-inch XGA display, designed to enhance automation and control applications with its user-friendly interface. Built for durability, this display boasts an IP66 rating, ensuring it can withstand harsh industrial environments while maintaining optimal performance. Weighing in at just 3 kg, it offers an effective solution for data acquisition and monitoring, making it an essential component for any modern PLC system. The intuitive touch functionality allows operators to interact seamlessly with their processes, enhancing efficiency and control in automated systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 67 mm |
|---|
Physical Attributes
| Display Size | 12.1 inch |
|---|
Complementary Attributes
| Integrated Connection Type | USB 2.0 type A |
|---|
| Us Rated Supply Voltage | 12...24 V DC power supply |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UKCA, UKEX |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 3.2693999999999996 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 171 kg CO2 eq., 171.01333333333332 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Display Resolution | 1024 x 768 pixels XGA |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Inrush Current | 30 A |
| Power Consumption In W | 21 W |
| Product Or Component Type | flat screen |
| Range Of Product | Harmony GTU |
| Shock Resistance | 147 m/s²IEC 61131-2 |
| Supply Voltage Limits | 10.8-28.8 V |
| Terminal Type | touchscreen display |
| Touch Panel | multi touch analogue resistive |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Height Nominal | 241 mm |
| Nbr. Of Units In Pkg. | 1 |
| Cut Out Dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 55 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.44582666666666665, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.6845999999999999, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 862 kg CO2 eq., 861.8972727272727 |
| Local Publishable Date | 2026-01-12 |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Aspect Ratio | 4:3 |
| Display Type | colour TFT LCD |
| Function Available | brightness sensor |
| Pixel Resolution | 1024 x 600 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | 1 flash card |
| Returnability | No |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 037 kg CO2 eq. |
| Touchscreen Resolution | 1024 x 1024 |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 |
| Display Color | 16 million colours |
| Data Source | extrapolated product |
| Width Nominal | 315 mm |
| Customs Code | 8528520000 |
| F Gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Silicone Free | No |
| Functional Unit Description | To provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2 |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1839.6 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 1037.3104327272727 |
| Ambient Air Temperature For Storage | -20-60 °C-20-60 °C |
| Environmental Disclosure | ENVPEP1402016EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Nema Degree Of Protection | NEMA 4X front panel |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402016EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Halogene Performance | Product contains halogen above thresholds |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-60 °C IEC 61131-2 |
| Circularity Profile | ENVEOLI1402016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | front panel IP66 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2024-03-13 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| F Gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
General Attributes
| Product Or Component Type | flat screen |
|---|---|
| Range Of Product | Harmony GTU |
| Provided Equipment | 1 flash card |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|---|
| ETIM 10 | EC001412 |
| ETIM 9 | EC001412 |
|---|
