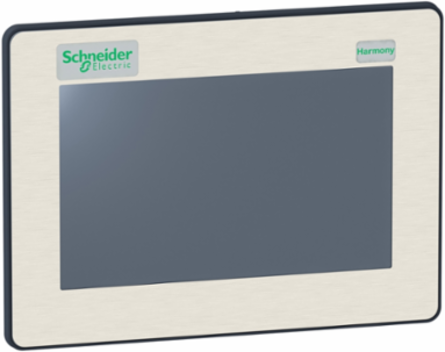

Schneider Electric HMIDT35X Harmony GTUX 7 Inch Outdoor Rugged Touchscreen Display, IP66, 1.3 kg
- MPN: HMIDT35X
- PPN: SCH-HMIDT35X
CAD
$2771.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony GTUX touchscreen display from Schneider Electric offers a robust solution for outdoor applications, featuring a 7-inch screen designed to withstand various environmental challenges. With an IP66 rating, this display is expertly sealed against water and dust, ensuring reliable performance even in harsh conditions. Weighing in at just 1.3 kg, it combines rugged durability with efficient functionality, making it an ideal choice for professionals looking to enhance their automation and control systems. Its user-friendly touchscreen interface allows for intuitive operation, making it a valuable addition to any HMI display setup.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, United States |
|---|
| Depth | 37 mm |
|---|
Physical Attributes
| Display Size | 7 inch |
|---|
| Display Color | 262144 colors |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Environmental Characteristic | corrosive gas free, UV resistant |
| Carbon Footprint Of The Distribution Phase [A4] | 0.44967000000000007, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.46253999999999995, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 510 kg CO2 eq., 510.45652173913044 |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | N |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Display Resolution | 800 x 480 pixels WVGA |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Luminance | 1000 cd/m² |
| Power Consumption In W | 12.5 W |
| Product Or Component Type | eXtreme touchscreen panel |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 588 kg CO2 eq. |
| Touchscreen Resolution | 1024 x 1024 |
| Vibration Resistance | 7 mm constant amplitude 5-9 Hz) IEC 61131-219.6 m/s² 9-150 Hz) IEC 61131-2 |
| Display Color | 262144 colors |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide 12" Wide TFT Smart Display during 10 years and maximum use rate at 11.5W, based on below function:& 10 - 12" Wide Touchscreen panel& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2 |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 1095 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 148.6 mm |
| [Us] Rated Supply Voltage | 12 V DC power supply |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 1.612 kg |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5] | 0.442 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] | 4.8113 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] | -2.9575 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 5.3937 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] | 5.1584 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 5.3937 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 4.8113 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -110.708 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 4.9101 |
| Customs Code | 8528592500 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | KC, CE, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, UKEX |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.41518 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 76 kg CO2 eq., 75.543 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Manufacturing Carbon Footprint | 75.543 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Aspect Ratio | 4:3 |
| Display Type | colour TFT LCD |
| Inrush Current | 30 A |
| Pixel Resolution | 800 x 480 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony GTUX |
| Shock Resistance | 392 m/s²IEC 61131-2 |
| Supply Voltage Limits | 10.8-28.8 V |
| Terminal Type | touchscreen display |
| Touch Panel | single touch analogue resistive |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1402017EN |
| Pep Verification Date | 2023-12-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 56 |
| Width Nominal | 203.6 mm |
| Cut-out Dimensions | 394 (+ 1/- 0) x 250 (+ 1/- 0) mm |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 75.543 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 67.795 |
| Materials For Recycling (Kg) End Of Life [C1-c4] | 0.7215 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 5.3937 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 5.3937 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1031.16 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 67.795 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 4.9101 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -4.5708 |
Environment Attributes Main
| Ip Degree Of Protection | IP66f, IP67ffront panel Type 4X |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | -30-65 °C-30-65 °C |
| Circularity Profile | ENVEOLI1402017EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2023-12-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 588.3269117391304 |
| Ambient Air Temperature For Storage | -30-70 °C-30-70 °C |
| Environmental Disclosure | ENVPEP1402017EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402017EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | eXtreme touchscreen panel |
|---|
| Range Of Product | Harmony GTUX |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
