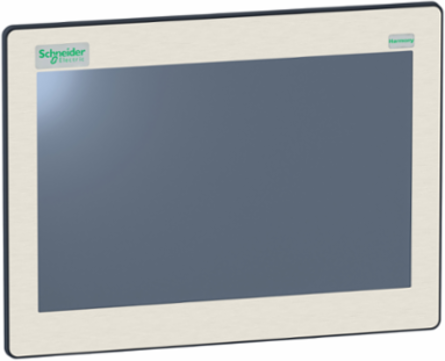

Schneider Electric HMIDT65X Harmony GTUX 12.1 Inch Outdoor Rugged Touchscreen Display, 1000 cd/m2 Luminance, IP66
- MPN: HMIDT65X
- PPN: SCH-HMIDT65X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for resilience in challenging environments, the HMIDT65X Harmony GTUX from Schneider Electric features a 12.1-inch outdoor rugged touchscreen display that excels in luminance, boasting an impressive 1000 cd/m2. This high brightness ensures visibility under various lighting conditions, making it an ideal choice for outdoor applications. With an IP66 rating, the display is designed to withstand dust and water, thus ensuring reliable operation in harsh conditions. This sophisticated interface integrates seamlessly into automation and control systems, enhancing the efficiency and ease of data monitoring and interaction.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States
Depth68 mm
Physical Attributes
- Display Size
- 12.1 inch
Display Color262144 colors
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Environmental Characteristic
- corrosive gas free, UV resistant
- Carbon Footprint Of The Distribution Phase [A4]
- 1.10688, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.1385599999999998, 1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 510 kg CO2 eq., 510.45652173913044
- Local Publishable Date
- 2026-07-15
- Stocking Flag
- N
- Device Type
- HMI - Graphical display unit
- Traceability
- Yes
- Average Life Duration
- 7 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 1280 x 800 pixels WVGA
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Luminance
- 1000 cd/m²
- Power Consumption In W
- 12.5 W
- Product Or Component Type
- eXtreme touchscreen panel
- Returnability
- Yes
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 702 kg CO2 eq.
- Touchscreen Resolution
- 1024 x 1024
- Vibration Resistance
- 7 mm constant amplitude 5-9 Hz) IEC 61131-219.6 m/s² 9-150 Hz) IEC 61131-2
- Display Color
- 262144 colors
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide 12" Wide TFT Smart Display during 10 years and maximum use rate at 11.5W, based on below function:& 10 - 12" Wide Touchscreen panel& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 1095
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 230.5 mm
- [Us] Rated Supply Voltage
- 12 V DC power supply
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 4.597 kg
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]
- 1.088
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 11.8432
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 396.704
- Materials For Recycling (Kg) End Of Life [C1-c4]
- 1.776
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 13.2768
- Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]
- 12.6976
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 13.2768
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2538.24
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 166.88
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 12.0864
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -11.2512
- Customs Code
- 8528520000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyKC, CE, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, UKEX
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.48352
Carbon Footprint Of The Manufacturing Phase [A1 To A3]186 kg CO2 eq., 185.952
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Manufacturing Carbon Footprint185.952
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1402017EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2514
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Aspect Ratio4:3
Display Typecolour TFT LCD
Inrush Current30 A
Pixel Resolution1280 x 800
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony GTUX
Shock Resistance392 m/s²IEC 61131-2
Supply Voltage Limits10.8-28.8 V
Terminal Typetouchscreen display
Touch Panelsingle touch analogue resistive
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1402017EN
Pep Verification Date2023-12-18
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %56
Width Nominal308.5 mm
Cut-out Dimensions295 (+ 1/- 0) x 217 (+ 1/- 0) mm
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]185.952
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]166.88
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-7.28
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]51.6864
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]13.2768
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-286.976
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]13.2768
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]11.8432
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-272.512
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]12.0864
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]21.5936
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-70 °C IEC 61131-2, -30-70 °C IEC 61131-2-30-70 °C IEC 61131-2, -30-70 °C IEC 61131-2
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 702.1374817391304
- Circularity Profile
- ENVEOLI1402017EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % non-condensing
- Pep Verification Date
- 2023-12-18
- Psr Version
- PSR-0005-ed2-2016 03 29
Ip Degree Of ProtectionIP66f, IP67ffront panel Type 4X
Halogene PerformanceProduct contains halogen above thresholds
China Rohs RegulationX
Silicon FreeNo
Ambient Air Temperature For Storage-30-70 °C-30-70 °C
Environmental DisclosureENVPEP1402017EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1402017EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- eXtreme touchscreen panel
Range Of ProductHarmony GTUX
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
