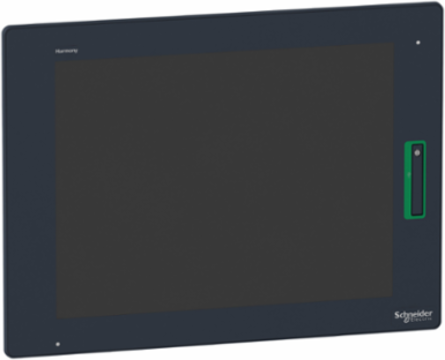

Schneider Electric HMIDT732FC Harmony GTU 15 Inch Touchscreen Smart Display XGA, IP66, 22W
- MPN: HMIDT732FC
- PPN: SCH-HMIDT732FC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
With its impressive 15-inch touchscreen and XGA resolution, this smart display from Schneider Electric offers a user-friendly interface that enhances interaction in various automation and control applications. Designed to meet IP66 standards, it promises robust protection against dust and water, making it suitable for challenging environments. The Harmony GTU is not only powerful with a 22W output but also ensures seamless data acquisition and monitoring, catering to the needs of modern control systems. Elevate your operational efficiency with this reliable HMI display that merges durability with advanced technology.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 67 mm |
|---|
Physical Attributes
| Display Size | 15 inch |
|---|
| Display Color | 16 million colours |
|---|
Complementary Attributes
| Integrated Connection Type | USB 2.0 type A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CE, UKCA, UKEX |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 5 kg CO2 eq., 4.9041 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 257 kg CO2 eq., 256.52 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Manufacturing Carbon Footprint | 256.52 |
| Use Carbon Footprint | 902.94 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Display Resolution | 1024 x 768 pixels XGA |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Inrush Current | 30 A |
| Power Consumption In W | 22 W |
| Product Or Component Type | flat screen |
| Range Of Product | Harmony GTU |
| Shock Resistance | 147 m/s²IEC 61131-2 |
| Supply Voltage Limits | 10.8-28.8 V |
| Terminal Type | touchscreen display |
| Touch Panel | multi touch analogue resistive |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1402016EN |
| Pep Verification Date | 2024-03-13 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 55 |
| Width Nominal | 397 mm |
| Cut-out Dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6] | 5.6184 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3] | 255.52 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4] | 4.9042 |
| Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3] | 256.52 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 902.94 |
| Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] | -27.096 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] | 9.3169 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 23926 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D] | -383.34 |
| Ecotoxicity (Fresh Water) (Ctue) Installation [A5] | 7.0635 |
| Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4] | 671.46 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 279.89 |
| Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -86.904 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3] | 215.93 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D] | -10.257 |
| Materials For Recycling (Kg) Installation [A5] | 0.566 |
| Net Use Of Fresh Water (M3) Manufacturing [A1-a3] | 1.0722 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 73.581 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 139.57 |
| Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -54.502 |
| Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6] | 2.109 |
| Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] | 7.4925 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 20.26 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 30172.4334 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] | 9.3294 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 26439 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D] | -401.99 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5] | 0.7689 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -18.646 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 20.26 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 27588.0419 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] | 9.3169 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 23926 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -383.25 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 11.141 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 39.154 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2512.9 |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 46.017 |
| Water Use (M3 Eq) End Of Life [C1-c4] | 1.0532 |
| Customs Code | 8528593370 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.66874, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 1.0269, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 903 kg CO2 eq., 902.94 |
| Local Publishable Date | 2026-01-28 |
| Stocking Flag | Y |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Installation Carbon Footprint | 1.0269 |
| End Of Life Carbon Footprint | 4.9041 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Aspect Ratio | 4:3 |
| Display Type | colour TFT LCD |
| Function Available | brightness sensor |
| Pixel Resolution | 1024 x 768 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | 1 flash card |
| Returnability | No |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 166 kg CO2 eq. |
| Touchscreen Resolution | 1024 x 1024 |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 |
| Display Color | 16 million colours |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2 |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1927.2 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 296 mm |
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 6.1 kg |
| Take-back | No |
| Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3] | 1.2767 |
| Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3] | 1.0029 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 902.27 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D] | -26.395 |
| Climate Change - Total ( Kg Co2 Eq.) Installation [A5] | 1.0269 |
| Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4] | 4.9041 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 3458.1 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5] | 10.685 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 204.24 |
| Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3] | 3626.9 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 12966 |
| Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D] | -1718.9 |
| Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 6.1165 |
| Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] | 8.7041 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 1470.7 |
| Marine Aquatic Eutrophication (Kg Of N Equiv) Manufacturing [A1-a3] | 0.3445 |
| Materials For Recycling (Kg) End Of Life [C1-c4] | 2.4565 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 0.8512 |
| Non-hazardous Waste Disposed Of (Kg) Installation [A5] | 3.3392 |
| Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 0.2938 |
| Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Manufacturing [A1-a3] | 1.3108 |
| Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3] | 3.6875 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 20.26 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D] | -0.094 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 3508.4 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5] | 11.454 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 204.25 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 50.295 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 2512.9 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 20.26 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -0.094 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 3437.8 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 10.685 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 204.24 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 11.141 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -10.152 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5] | 0.7689 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D] | -8.4938 |
| Water Use (M3 Eq) Operational Energy Use [B6] | 36.559 |
| Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D] | -6.3517 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 1166.05974 |
| Ambient Air Temperature For Storage | -20-60 °C-20-60 °C |
| Environmental Disclosure | ENVPEP1402016EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Nema Degree Of Protection | NEMA 4X front panel |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402016EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Halogene Performance | Product contains halogen above thresholds |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-60 °C IEC 61131-2 |
| Circularity Profile | ENVEOLI1402016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | front panel IP66 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2024-03-13 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | flat screen |
|---|---|
| Range Of Product | Harmony GTU |
| Provided Equipment | 1 flash card |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
Similar Products
Loading carousel layout...
Loading carousel layout...
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
