Schneider Electric HMIDT952 Harmony GTU 18.5 Inch Touch Screen Display, 1366 x 768 Pixels FWXGA, IP66/IP67
- MPN: HMIDT952
- PPN: SCH-HMIDT952
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

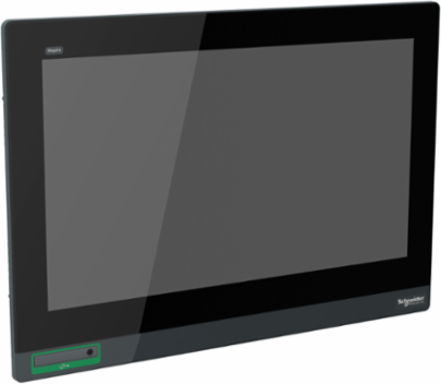

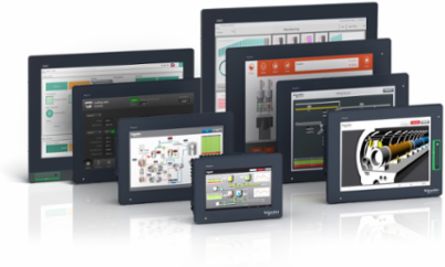

The touch screen display features 18.5inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 483mm (width) x 69mm (depth) x 337mm (height). It weighs 6.8kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, Spain, France, United Kingdom, Indonesia, Sweden, Singapore, United States |
|---|
| Depth | 69 mm |
|---|
Physical Attributes
| Display Size | 18.5 inch |
|---|
| Display Color | 16 million colours |
|---|
Complementary Attributes
| Integrated Connection Type | USB 2.0 type A, USB 2.0 type mini B |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | RCM, cULus, CE, KC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 7.410639999999999, 7 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 388 kg CO2 eq., 387.6302222222222 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Display Resolution | 1366 x 768 pixels FWXGA |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Inrush Current | 30 A |
| Power Consumption In W | 19 W |
| Product Or Component Type | flat screen |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 177 kg CO2 eq. |
| Touchscreen Resolution | 2048 x 2048 |
| Vibration Resistance | 3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2 |
| Display Color | 16 million colours |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2 |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1664.4 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 337 mm |
| [Us] Rated Supply Voltage | 12...24 V DC power supply |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 7.890 kg |
| Take-back | No |
| Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] | -131.3216 |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 69.5368 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 1.0105404444444444, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 2 kg CO2 eq., 1.5517599999999998 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 780 kg CO2 eq., 779.8118181818182 |
| Local Publishable Date | 2026-07-27 |
| Stocking Flag | N |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1402016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2514 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Aspect Ratio | 4:3 |
| Display Type | colour TFT LCD |
| Function Available | brightness sensor |
| Pixel Resolution | 1366 x 768 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony GTU |
| Shock Resistance | 147 m/s²IEC 61131-2 |
| Supply Voltage Limits | 10.8-28.8 V |
| Terminal Type | touchscreen display |
| Touch Panel | multi-touch projected capactive technology (PCT) 50000000 cycles |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1402016EN |
| Pep Verification Date | 2024-03-13 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 55 |
| Width Nominal | 483 mm |
| Cut-out Dimensions | 465 (+ 1/- 0) x 319 (+ 1/- 0) mm |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 1270.15 |
| Customs Code | 8528592500 |
Environment Attributes Main
| Ip Degree Of Protection | front panel IP66, front panel IP67 |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Silicon Free | No |
| Ambient Air Temperature For Operation | 0-55 °C IEC 61131-2 |
| Circularity Profile | ENVEOLI1402016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 4X front panel |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1402016EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 1177.414980848485 |
| Ambient Air Temperature For Storage | -20-60 °C-20-60 °C |
| Environmental Disclosure | ENVPEP1402016EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2024-03-13 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | flat screen |
|---|
| Range Of Product | Harmony GTU |
|---|
