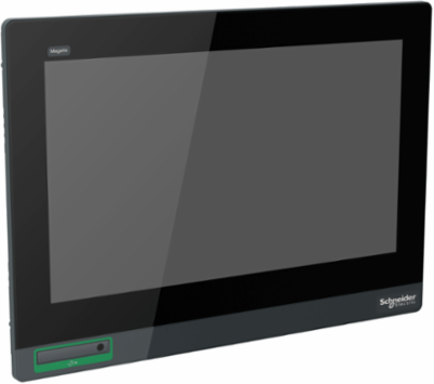

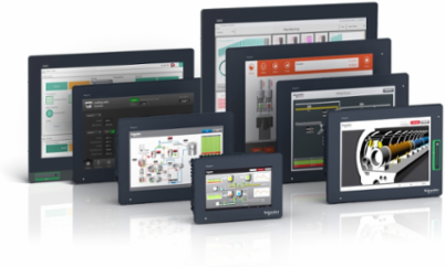

Schneider Electric HMIDT752 Harmony GTU Touchscreen Display 15.6 Inch 1366 x 768 Pixels IP66/IP67
- MPN: HMIDT752
- PPN: SCH-HMIDT752
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The touch screen display features 15.6inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 414mm (width) x 69mm (depth) x 295mm (height). It weighs 5kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Spain, Indonesia, Sweden, Singapore, United States
Depth69 mm
Physical Attributes
- Display Size
- 15.6 inch
Display Color16 million colours
Complementary Attributes
- Integrated Connection Type
- USB 2.0 type A, USB 2.0 type mini B
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- KC, CE, RCM, cULus, UKCA, UKEX
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 5.449, 5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 285 kg CO2 eq., 285.02222222222224
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Installation Carbon Footprint
- 1.141
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Display Resolution
- 1366 x 768 pixels FWXGA
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Inrush Current
- 30 A
- Power Consumption In W
- 17 W
- Product Or Component Type
- flat screen
- Returnability
- Yes
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 990 kg CO2 eq.
- Touchscreen Resolution
- 2048 x 2048
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2
- Display Color
- 16 million colours
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1489.2
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 295 mm
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 5.630 kg
- Take-back
- No
- Climate Change - Total ( Kg Co2 Eq.) Installation [A5]
- 1.141
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -96.56
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 10.366
- Water Use (M3 Eq) Manufacturing [A1-a3]
- 51.13
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.7430444444444445, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1 kg CO2 eq., 1.141
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]698 kg CO2 eq., 697.7263636363637
Local Publishable Date2026-01-12
Stocking FlagN
Device TypeHMI - Graphical display unit
TraceabilityYes
Average Life Duration7 year(s)
End Of Life Carbon Footprint5.449
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1402016EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2514
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Aspect Ratio4:3
Display Typecolour TFT LCD
Function Availablebrightness sensor
Pixel Resolution1366 x 768
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony GTU
Shock Resistance147 m/s²IEC 61131-2
Supply Voltage Limits10.8-28.8 V
Terminal Typetouchscreen display
Touch Panelmulti-touch projected capactive technology (PCT) 50000000 cycles
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1402016EN
Pep Verification Date2024-03-13
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %55
Width Nominal414 mm
Cut-out Dimensions396 (+ 1/- 0) x 277 (+ 1/- 0) mm
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]5.449
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1136.45
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-11.28
Customs Code8528520000
Environment Attributes Main
- Ip Degree Of Protection
- front panel IP66, front panel IP67
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Ambient Air Temperature For Operation
- 0-55 °C IEC 61131-2
- Circularity Profile
- ENVEOLI1402016EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4X front panel
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1402016EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint990.0816303030302
Ambient Air Temperature For Storage-20-60 °C-20-60 °C
Environmental DisclosureENVPEP1402016EN
Halogen Content PerformanceProduct contains halogen above thresholds
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity10-90 % non-condensing
Pep Verification Date2024-03-13
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- flat screen
Range Of ProductHarmony GTU
ETIM
- ETIM 8
- EC001412
ETIM 9EC001412
