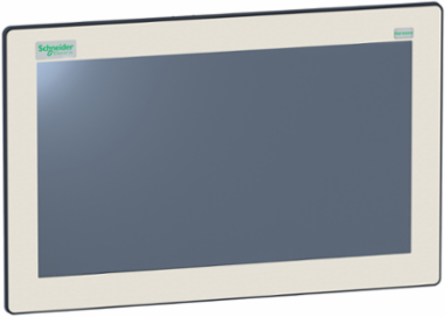

Schneider Electric HMIDT75X Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated
Schneider Electric HMIDT75X Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated
- MPN: HMIDT75X
- PPN: SCH-HMIDT75X
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated
Specifications
Complementary
- Height
- 264 mm
- Touchscreen Resolution
- 1024 x 1024
- Luminance
- 1000 cd/m²
- Cut-Out Dimensions
- 394 (+ 1/- 0) x 250 (+ 1/- 0) mm
- Display Type
- colour TFT LCD
- Display Size
- 15.6 inch
- Width
- 408 mm
- Aspect Ratio
- 4:3
Pixel Resolution1366 x 768
Display Resolution1366 x 768 pixels FWXGA
Net Weight4.8 kg
Type Of Coolingnatural convection
Touch Panelsingle touch analogue resistive
Display Colour262144 colors
Depth68 mm
Environment
- Product Certifications
- KC || CE || RCM || EAC || ATEX zone 2/22 || IEC-Ex || UL || CSA || UKCA || UKEX
- Standards
- UL 61010 || UL 121201 || CSA C22.2 No 213 || CSA C22.2 No 61010-1 || IEC 61132-2
- Ip Degree Of Protection
- IP66f || IP67f || front panel Type 4X
- Vibration Resistance
- 7 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
- Ambient Air Temperature For Storage
- -20-60 °C
- Relative Humidity
- 10-90 % non-condensing
Ambient Air Temperature For Operation-20-60 °C IEC 61131-2
Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Shock Resistance392 m/s²IEC 61131-2
Pollution Degree2
Environmental Characteristiccorrosive gas free || UV resistant
Operating Altitude2000 m
Specifications
- Power Consumption In W
- 12.5 W
- [Us] Rated Supply Voltage
- 12 V DC power supply
- Product Or Component Type
- eXtreme touchscreen panel
- Supply Voltage Limits
- 10.8-28.8 V
Range Of ProductHarmony GTUX
Inrush Current30 A
Terminal Typetouchscreen display
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1402016EN
Environmental DisclosureENVPEP1402016EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
