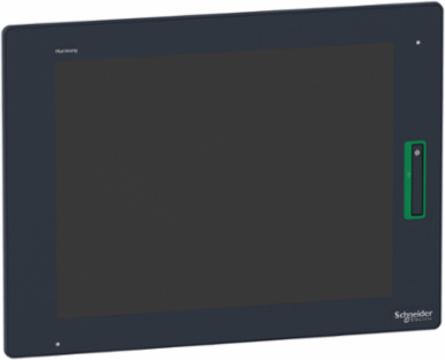

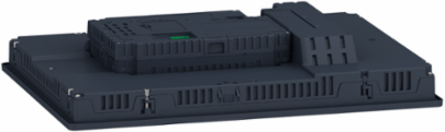

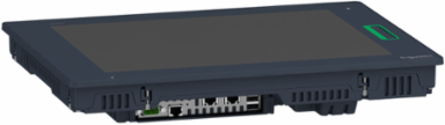

Schneider Electric HMIDT732 Harmony GTU Touchscreen HMI, 15 Inch, 1024 x 768 Pixels, IP66/IP67

  • MPN: HMIDT732
  • PPN: SCH-HMIDT732
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 15" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, Costa Rica, Spain, France, United Kingdom, Indonesia, Mexico, United States
    Depth67 mm

    Physical Attributes

    Display Size15 inch
    Display Color16 million colours

    Complementary Attributes

    Integrated Connection TypeUSB 2.0 type A, USB 2.0 type mini B

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC, SI
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Certificate AgencycULus, RCM, KC, CE, UKCA, UKEX
    Carbon Footprint Of The End-of-life Phase [C1 To C4]4.9041, 5 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]257 kg CO2 eq., 256.52
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityYes
    Field Service DivisionIDIBS
    Manufacturing Carbon Footprint256.52
    Use Carbon Footprint902.94
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution1024 x 768 pixels XGA
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Inrush Current30 A
    Power Consumption In W22 W
    Product Or Component Typeflat screen
    ReturnabilityYes
    Software Versionv5.9.4
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint1 166 kg CO2 eq.
    Touchscreen Resolution1024 x 1024
    Vibration Resistance3.5 mm constant amplitude 5-9 Hz) IEC 61131-29.8 m/s² 9-150 Hz) IEC 61131-2
    Display Color16 million colours
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide 15" Wide TFT Smart Display during 10 years and maximum use rate at 22W, based on below function:& 10 - 15" Wide Touchscreen panel& 10 - USB 2.0 (type A,type mini B)& 10 - Status LED& 10 - Power Plug Connector& 10 - Box Module Interface& 10,in accordance with the relevant standards:& 10 - UL 508& 10 - ANSI/ISA 12-12-01& 10 - Class I division 2 CSA C22.2 No 213& 10 - CSA C22.2 No 142& 10 - IEC 61132-2
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh1927.2
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
    Height Nominal296 mm
    [Us] Rated Supply Voltage12...24 V DC power supply
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)6.266 kg
    Take-backNo
    Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]1.2767
    Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]1.0029
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]902.27
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-26.395
    Climate Change - Total ( Kg Co2 Eq.) Installation [A5]1.0269
    Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]4.9041
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]3458.1
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]10.685
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]204.24
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]3626.9
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]12966
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-1718.9
    Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]6.1165
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]8.7041
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]1470.7
    Marine Aquatic Eutrophication (Kg Of N Equiv) Manufacturing [A1-a3]0.3445
    Materials For Recycling (Kg) End Of Life [C1-c4]2.4565
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]0.8512
    Non-hazardous Waste Disposed Of (Kg) Installation [A5]3.3392
    Non-hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]0.2938
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Manufacturing [A1-a3]1.3108
    Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]3.6875
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle20.26
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.094
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]3508.4
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]11.454
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]204.25
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]50.295
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2512.9
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle20.166
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.094
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3437.8
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10.685
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]204.24
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle11.141
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-10.152
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]0.7689
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-8.4938
    Water Use (M3 Eq) Operational Energy Use [B6]36.559
    Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-6.3517
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
    Market SegmentationCommercial, Industrial
    Carbon Footprint Of The Distribution Phase [A4]0.66874, 0.7 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]1 kg CO2 eq., 1.0269
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]903 kg CO2 eq., 902.94
    Local Publishable Date2026-07-27
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Installation Carbon Footprint1.0269
    End Of Life Carbon Footprint4.9041
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1402016EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2514
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Aspect Ratio4:3
    Display Typecolour TFT LCD
    Function Availablebrightness sensor
    Pixel Resolution1024 x 768
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony GTU
    Shock Resistance147 m/s²IEC 61131-2
    Supply Voltage Limits10.8-28.8 V
    Terminal Typetouchscreen display
    Touch Panelmulti touch analogue resistive
    Type Of Coolingnatural convection
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1402016EN
    Pep Verification Date2024-03-13
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourcereferent product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
    Recyclability Potential In %55
    Width Nominal397 mm
    Cut-out Dimensions383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
    F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18
    Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]5.6184
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]255.52
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]4.9042
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]256.52
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]902.94
    Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-27.096
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]9.3169
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]23926
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-383.34
    Ecotoxicity (Fresh Water) (Ctue) Installation [A5]7.0635
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]671.46
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]279.89
    Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-86.904
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]215.93
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-10.257
    Materials For Recycling (Kg) Installation [A5]0.566
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]1.0722
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]73.581
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]139.57
    Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-54.502
    Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]2.109
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]7.4925
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]20.26
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle30172.4334
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]9.3294
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]26439
    Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-401.99
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]0.7689
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-18.646
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]20.26
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle27588.0419
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]9.3169
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]23926
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-383.25
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]11.141
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]39.154
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2512.9
    Water Use (M3 Eq) Manufacturing [A1-a3]46.017
    Water Use (M3 Eq) End Of Life [C1-c4]1.0532
    Customs Code8528592500

    Environment Attributes Main

    Ip Degree Of Protectionfront panel IP66, front panel IP67
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-60 °C IEC 61131-2
    Circularity ProfileENVEOLI1402016EN
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of ProtectionNEMA 4X front panel
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1402016EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint1166.05974
    Ambient Air Temperature For Storage-20-60 °C-20-60 °C
    Environmental DisclosureENVPEP1402016EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2024-03-13
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeflat screen
    Range Of ProductHarmony GTU

    ETIM

    ETIM 8EC001412
    ETIM 9EC001412

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    Harmony GTU Touchscreen HMI, 15 Inch, 1024 x 768 Pixels, IP66/IP67
    Harmony GTU Touchscreen HMI, 15 Inch, 1024 x 768 Pixels, IP66/IP67
    Harmony GTU Touchscreen HMI, 15 Inch, 1024 x 768 Pixels, IP66/IP67

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
