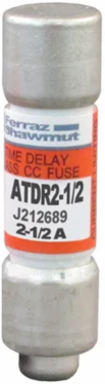

Mersen ATDR2-1/2 Fuse Amp-Trap 2000 600V 2.5A Time-Delay Class CC, 1.5 Inch Length
- MPN: ATDR2-1/2
- UPC: 782001900953
- PPN: FER-ATDR2-1/2
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- As a specialized Class CC fuse, the ATDR series offers the smallest physical footprint for a 600V-rated branch circuit protection device. This ultra-compact design allows industrial engineers to downsize control panels and motor starters without sacrificing power, saving valuable real estate in high-density automation environments.
- Specifically engineered with an Amp-Trap 2000® time-delay characteristic, this 2.5-amp fuse is optimized to withstand the high inrush currents typical of inductive loads like motor-control transformers and small motors. This prevents frustrating nuisance tripping during equipment startup, ensuring continuous uptime for your production line while maintaining precise overload defense.
- This fuse is highly current-limiting, meaning it reacts in less than half a cycle to interrupt a fault before it reaches its peak magnitude. By significantly reducing the thermal and magnetic energy (let-through) during a short circuit, it prevents catastrophic damage to sensitive contactors, solid-state relays, and other delicate "Type 2" coordinated components.
- The ATDR2-1/2 features a unique rejection tip that prevents the accidental installation of lower-rated or non-current-limiting fuses into the fuse holder. This mechanical safety "lock" ensures that your 600V branch circuits always maintain their required level of protection, keeping your facility compliant with UL 248-4 and CSA C22.2 safety standards.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 300 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Class
- Class CC
- Weight
- 0.017 lb
- Connection Terminal Material
- Tin-Plated Copper
- Body Insulating Material
- GMG Fiberglass
Amperage2.5 A
Fuse TypeTime-Delay
Length1.5 in
MountingClip
Connection Terminal TypeFerrule
Frequency50/60 Hz
