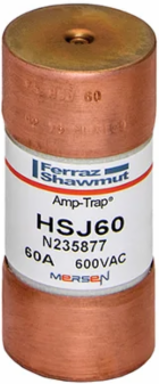

Mersen HSJ60 Fuse Amp-Trap® 600V 60A Class J High-Speed Fuse, 200 kA Breaking Capacity

Fuse Amp-Trap® 600V 60A Class J High-Speed Fuse, 200 kA Breaking Capacity
  • MPN: HSJ60
  • UPC: 782001329556
  • PPN: FER-HSJ60

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$78.04/ EA

Description

The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.

Specifications

Specifications

Rated voltage AC UL
600 V
Frequency (Hz)
50/60 Hz
ROHS Compliant
Yes
Fuse Class
Class J
Mounting
Clip
Connection/Terminal Material
Tin-Plated Copper
Body/Insulating Material
GMG
Weight
0.157 lb
Rated voltage DC UL500 V
Ampere Rating60 A
AC or DCAC/DC
Speed/CharacteristicHigh Speed
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeFerrule
Length2.38 in
