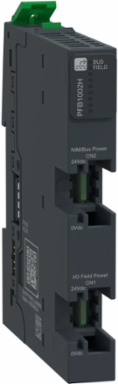

Schneider Electric NTSPFB1002HK Power Supply Module + Base, 24V DC, Bus and Field, Hardened, Modicon Edge I/O NTS

MPN: NTSPFB1002HK
PPN: SCH-NTSPFB1002HK
UNSPSC: 32151705

$169.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

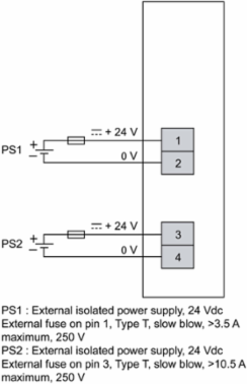

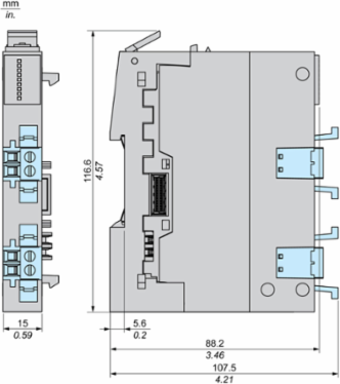

This power supply kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a power supply module. Its Rated supply voltage is 24VDC and it distributes 3.5A for bus supply and 10.5A for field supply (network interface modules and modules). It distributes the bus power supply for Network Interface modules , and I/O modules. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.078kg. It is compatible with I/O modules and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Features

Conformal coating, extended temperature range, operates in severe environment
Hot-swappable module
Save time and less time to market
Reduce cost and unplanned downtime
Increase flexibility
Data-driven and cybersecure

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	80 mm

Weight	77 g

Complementary Attributes

Maximum Power Dissipation In W	1.562 W

Us Rated Supply Voltage	24 V DC

Important Information Attributes

Kit Composition	NTSPFB1002H module, NTSXBA0103H base
Marking	CE, UKCA, cULus, RCM
Protection Type	Overvoltage protection for bus and field, undervoltage protection for bus and field, overload protection for bus and field, short-circuit protection for bus and field, Reverse polarity protection for bus and field, inrush current control for field, voltage surge protection for bus and field, short power cut for bus
Carbon Footprint Of The Distribution Phase A4	0.11394025836389984, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.00021329912145234424
Carbon Footprint Of The Use Phase B2 B3 B4 B6	43 kg CO2 eq., 42.83627474067026
Local Publishable Date	2026-01-12
Pre Comm Date	2024-12-19
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2409008EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2439
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Device Application	industrial application in severe environment
Mandatory Accessory	2x NTSXTB02*30H terminal block
Product Or Component Type	power distribution module kit
Range Of Product	Modicon Edge I/O NTS
Returnability	Yes
Software Version	v6.1
Sustainable Packaging	Yes
Typical Current Consumption	3500 mA on the Bus current10500 mA on the field current
Housing Color	grey
Output Voltage Dc	24-24 V
Data Source	extrapolated product
Width Nominal	15 mm
Max. Output Current Dc	10.5 A
Customs Code	8504409530
Packaging Weight In G	3.1
Functional Unit Quantity	1
Reference Lifetime In Y	10

Local Signalling	1 LED green bus, 1 LED green external power supply
Mounting Support	top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
Certificate Agency	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2206861695653441, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	512 kg CO2 eq., 511.7262779257628
Local Data Status	Publishable
Pre Comm Announcement Date	2024-12-19
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Hot Swapping Fallback	yes
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	conformal coating
Redundancy	no
Shock Resistance	15 g 11 ms with and without accessory)
Supply Voltage Limits	20.4-28.8 V DC
Total Lifecycle Carbon Footprint	555 kg CO2 eq.
Vibration Resistance	1 g without accessory2 g with accessory
Input Voltage Dc	24-28.8 V
Database Version	2023-02
Height Nominal	100 mm
Max. Input Current Dc	10.5 A
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Description	To supply power to I/O modules in Modicon Edge I/O NTS System during 10 years with a 100% use rate and a power dissipation of 1,562W.To supply power to I/O modules in Modicon Edge I/O NTS System during 10 years with a 100% use rate and a power dissipation of 1,562W.
Functional Unit Unit	Unit

Environment Attributes Main

Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-70 °C-40-70 °C
Circularity Profile	ENVEOLI2409008EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2409008EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	554.8973923934839
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP2409008EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	NTSN.....
Relative Humidity	5-95 % without condensation
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
