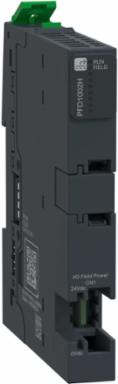

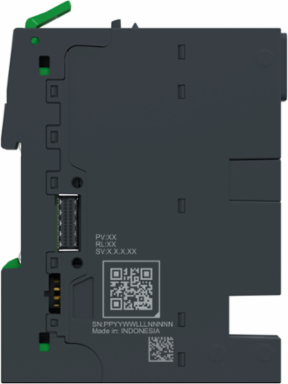

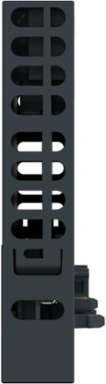

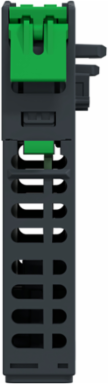

Schneider Electric NTSPFD1002HK Power Supply Module + Base, 24V DC, Field, Hardened, Modicon Edge I/O NTS
- MPN: NTSPFD1002HK
- PPN: SCH-NTSPFD1002HK
CAD
$146.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

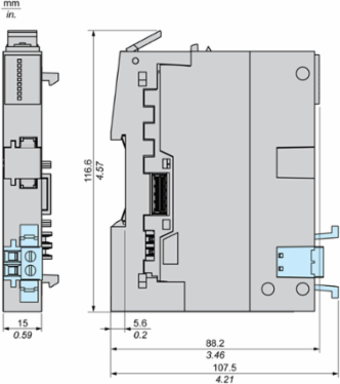

This power supply kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and a power supply module. Its Rated supply voltage is 24VDC, and it distributes 10.5A for field supply (network interface modules and modules) and has an automatic disjunction. It distributes Field Power supply in a cluster of modules. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep, and weighs 0.078kg. It is compatible with I/O modules and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Power Dissipation In W
- 1.314 W
Important Information Attributes
- Local Signalling
- 1 LED green bus, 1 LED green external power supply
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.21953974790526434, 0.2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 509 kg CO2 eq., 509.06795959887563
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2024-12-19
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Hot Swapping Fallback
- yes
- Product Or Component Type
- power distribution module
- Range Of Product
- Modicon Edge I/O NTS
- Returnability
- Yes
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 3500 mA on the Bus current10500 mA on the field current
- Housing Color
- grey
- Output Voltage Dc
- 24-24 V
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To supply power to I/O modules in Modicon Edge I/O NTS System during 10 years with a 100% use rate and a power dissipation of 1,562W.To supply power to I/O modules in Modicon Edge I/O NTS System during 10 years with a 100% use rate and a power dissipation of 1,562W.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 100 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Max. Output Current Dc
- 10.5 A
- Package Weight(Lbs)
- 105.000 g
- Warranty (In Months)
- 18
MarkingCE, UKCA, cULus, RCM
Protection TypeOvervoltage protection for bus and field, undervoltage protection for bus and field, overload protection for bus and field, short-circuit protection for bus and field, Reverse polarity protection for bus and field, inrush current control for field, voltage surge protection for bus and field
Carbon Footprint Of The Distribution Phase [A4]0.1133483609178536, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.00021219107406817618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]37 kg CO2 eq., 36.88523264039367
Local Publishable Date2026-01-12
Pre Comm Date2024-12-19
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2409008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationindustrial application in severe environment
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
Redundancyno
Shock Resistance15 g 11 ms with and without accessory)
Supply Voltage Limits19.2-30 V DC
Total Lifecycle Carbon Footprint546 kg CO2 eq.
Vibration Resistance1 g without accessory2 g with accessory
Input Voltage Dc24-28.8 V
Pep CodeENVPEP2409008EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal15 mm
Max. Input Current Dc10.5 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504409530
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Circularity Profile
- ENVEOLI2409008EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000 m...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2409008EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint546.2862925391665
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2409008EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- power distribution module
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC002583
ETIM 9EC002583
Output Attributes
- Output Voltage Type
- DC
Input Attributes
- Input Current
- 10.5 mA for field supply
Input Voltage TypeDC
