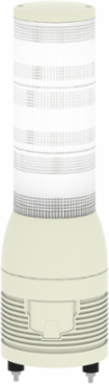

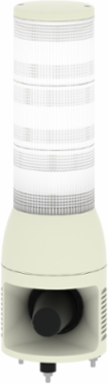

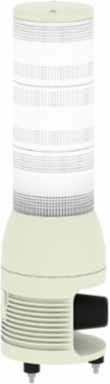

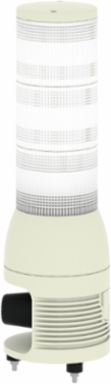

Schneider Electric XVC1B3HK Harmony XVC Pre-Wired Tower Light 100mm, 24V DC, Siren 0-102 dB
- MPN: XVC1B3HK
- PPN: SCH-XVC1B3HK
CAD
$1000.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

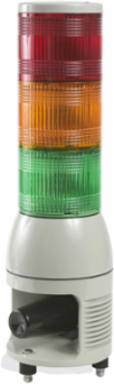

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 100mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green), a siren and a base fitted with 3 screws for direct mounting on an horizontal surface (IP 54). Supply voltage is 24 V DC. It is designed for long distance indication of the operating states of a machine, either visually by means of illuminated signaling units visible through 360° (super bright LED for steady or flashing light), or audibly by means of a siren. It is more particularly designed for industrial applications and machine-tools.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Harmony XVC1 |
|---|---|
| Beacon Or Indicator Bank Unit Type | 3 illuminated units |
| Supply Circuit Type | DC |
| Product Or Component Type | complete pre-wired monolithic tower light |
| Sound Signalling | siren |
| Noise Level | 0-102 dB continuous or intermittent tone)1 m |
|---|---|
| Mounting Diameter | 100 mm |
| Light Source | LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green |
| Component Name | XVC |
| [Us] Rated Supply Voltage | 24 V |
Complementary
| Height | 449 mm |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV |
| Cable Cross Section | 0.33-0.33 mm² || 0.83-0.83 mm² |
| Material | polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover |
| Marking | CE |
| Current Consumption | 660 mA |
| Awg Gauge | AWG 22 || AWG 18 |
|---|---|
| Flashing Frequency | 0.7-3 Hz |
| Product Mounting | on base |
| Cable Length | 500 mm |
| Net Weight | 1.98 kg |
Environment
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Storage | -35-70 °C |
| Electrical Shock Protection Class | class II EN/IEC 61140 |
| Ip Degree Of Protection | IP54 EN/IEC 60529 |
| Ambient Air Temperature For Operation | -20-50 °C |
|---|---|
| Standards | EN/IEC 61000-6-4 || EN/IEC 61000-6-3 || EN/IEC 61000-6-2 |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1904008EN |
| Circularity Profile | ENVEOLI1904008EN |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
