Weidmuller 1200600000 HDC-C-HE-SM0.75-1.00AG
- MPN: 1200600000
- PPN: WDM-1200600000
CAD
$0.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

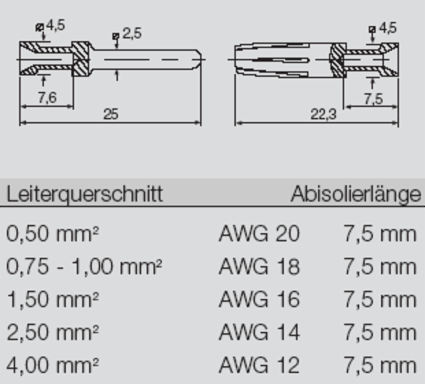

Heavy-duty connectors, Crimp contact, HE, HEE, HQ, MixMate, Pin, Conductor cross-section, max.: 1, turned, Copper alloy
Documentation & Downloads
Specifications
General Data

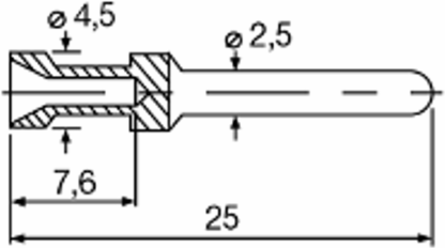

- Contact diameter, male Ø
- 2.5 mm
- Material
- Copper alloy
- Production methods
- turned
- Stripping length, rated connection
- 7.5 mm
- Surface layer thickness, max.
- 3 µm
- Type
- Pin
- Version insert
- HE, HEE, HQ, MixMate
Cross-section for connected wire0.75 - 1 mm²
Plugging cycles≥ 500
SeriesHE
Surface finishsilver
Surface layer thickness, min.2 µm
Type of connectionCrimp connection
Volume resistance≤ 2mΩ
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Net weight
- 1.272 g
Diameter4.5 mm
General Descriptions
- Plugging cycles
- ≥ 500
Material
- Material
- Copper alloy
Connection Data
- Conductor cross-section, min.
- 0.75 mm²
- Stripping length
- 7.5 mm
Conductor cross-section, max.1 mm²
Classifications
- ETIM 6.0
- EC000796
- eClass 9.0
- 27-44-02-04
- eClass 10.0
- 27-44-02-04
ETIM 7.0EC000796
eClass 9.127-44-02-04
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- Crimping contact
- Type
- Pin
Product typeCrimp contact
Type of connectionCrimp connection
