Weidmuller 1873550000 HDC HE 10 MP
Weidmuller 1873550000 HDC HE 10 MP
- MPN: 1873550000
- PPN: WDM-1873550000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$11.79/ EA
Description

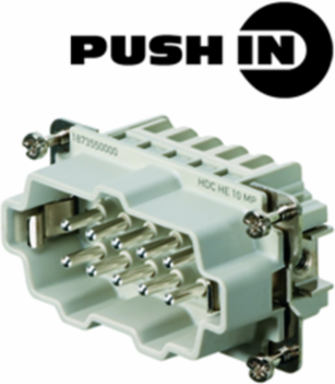

HDC insert, Pin, 500 V, 16 A, Number of poles: 10, PUSH IN, Size: 4
Specifications
General Data
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- Insulation strength
- 1010 Ω
- Number of poles
- 10
- Pollution severity
- 3
- Rated impulse voltage (DIN EN 61984)
- 6 kV
- Rated voltage according to UL/CSA
- 600 V AC/DC
- Size
- 4
- Type
- Pin
- Volume resistance
- ≤ 2mΩ
Insulating material groupIIIa
MaterialCopper alloy
Plugging cycles, silver≥ 500
Rated current (DIN EN 61984)16 A
Rated voltage (DIN EN 61984)500 V
SeriesHE
Surface finishSilver passivated
UL 94 flammability ratingV-0
Approvals
- Approvals
- CSA, cURus, DNV GL, EAC
- UL File Number Search
- E92202
ROHSConform

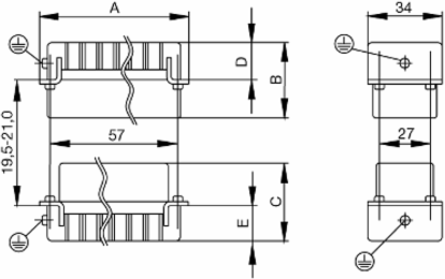

Dimensions And Weights
- Width
- 34 mm
- Height
- 34.3 mm
- Depth
- 64 mm
- Net weight
- 56 g
Width (inches)1.339 inch
Height (inches)1.35 inch
Depth (inches)2.52 inch
General Descriptions
- Number of poles
- 10
Size4
Dimensions
- Height of plug
- 34.3 mm
Total length base64 mm
Version
- Blade size, slotted (screw connection)
- SD 0.5 x 3.0
- Conductor cross-section, min.
- 0.5 mm²
- Size
- 4
- Surface finish
- Silver passivated
- Volume resistance
- ≤ 2mΩ
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Conductor cross-section, max.2.5 mm²
MaterialCopper alloy
Stripping length, rated connection10 mm
Type of connectionPUSH IN
Wire connection cross section, finely stranded, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire cross-section, solid, max.1.5 mm²
Material
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- UL 94 flammability rating
- V-0
Colourbeige
MaterialCopper alloy
Connection Data
- Conductor cross-section, min.
- 0.5 mm²
Conductor cross-section, max.2.5 mm²
Connection Data Pe
- Blade size, crosshead
- size PH1
- Connection type PE
- Screw connection
- Rated cross-section
- 4 mm²
- Tightening torque, max. PE connection
- 1.5 Nm
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross section, AWG (PE), max.
- AWG 12
- Wire cross-section, solid, max.
- 1.5 mm²
Blade size, slotted (PE connection)SD 0.8 x 4.0
Fixing screwM 4
Stripping length PE connection10 mm
Tightening torque, min. PE connection1.2 Nm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross section, AWG (PE), min.AWG 20
Wire cross-section, solid, min.0.5 mm²
Classifications
- ETIM 6.0
- EC000438
- eClass 9.0
- 27-44-02-05
- eClass 10.0
- 27-44-02-05
ETIM 7.0EC000438
eClass 9.127-44-02-05
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC insert
- Type
- Pin
- Blade size, crosshead
- size PH1
Product typeInsert
Type of connectionPUSH IN
Temperatures
- Limit temperature
- -40 °C ... 125 °C
