Weidmuller 1498700000 HDC HSB 6 MS
- MPN: 1498700000
- PPN: WDM-1498700000
CAD
$43.96
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

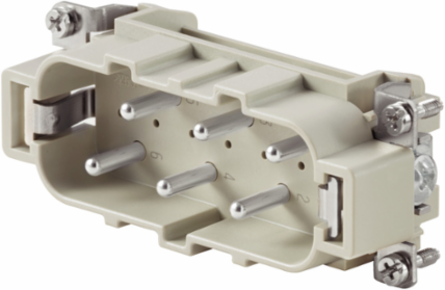

HDC insert, Pin, 400 V, 35 A, Number of poles: 6, Screw connection, Size: 6
Documentation & Downloads
Specifications
Additional
| Rated Current | 35 A |
|---|---|
| Nominal Voltage | 600 V AC/DC |
| Min. Torque for Main Contact | 1.2 Nm |
| Tightening Torque Min PE Connection | 2 Nm |
| Pollution Severity | 3 |

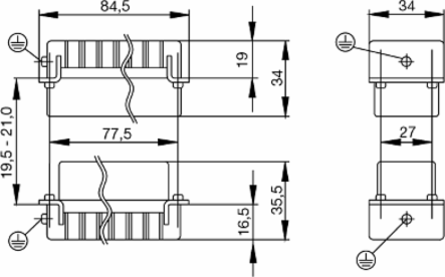

| Depth | 84.5 mm (3.327 inch) |
| Width | 34 mm (1.339 inch) |
| Conductor Cross-Section | 6 mm2 |
| Wire Connection Cross Section Max | 6 mm2 (AWG 10) |
| Material | Copper alloy |
| Insulating Material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Volume Resistance | 2 m |
| Insulation Strength | 1010 |
| Approvals | CSA, cURus (UL Listed), EAC, RoHS Compliant |
| Low Smoke Acc. | DIN EN 45545-2 |
| Plugging Cycles Gold | 500 |
| Type | Pin (Male) |
| Clamping Screw | M4 |
| Series | HSB |
| Product Family | HDC insert |
| Net Weight | 82 g |
| Rated Voltage | 400 V |
|---|---|
| Number of Poles | 6 |
| Max. Torque for Main Contact | 1.5 Nm |
| Tightening Torque Max PE Connection | 2.5 Nm |
| Temperature Range | -40 C to 125 C |
| Height | 34 mm (1.339 inch) |
| Installation Size | 6 |
| Wire Connection Cross Section Min | 0.5 mm2 (AWG 20) |
| Blade Size | size PZ1, crosshead Gr. PZ2, slotted SD 0.8 x 4.0, PE 1 x 5.5 mm |
| Surface Finish | Silver passivated |
| UL 94 Flammability Rating | V-0 |
| Insulation Resistance | 109 |
| Rated Impulse Voltage | 6 kV (DIN EN 61984) |
| Free from Halogens | True |
| Plugging Cycles Silver | 500 |
| Pollution Severity | 3 |
| Connection Type | Screw connection |
| Fixing Screw | M5 |
| Product Type | Insert |
| Color | Beige |
