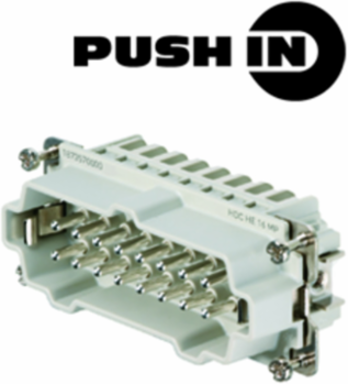

Weidmuller 1873570000 HDC HE 16 MP
- MPN: 1873570000
- PPN: WDM-1873570000
CAD
$18.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDC insert, Pin, 500 V, 16 A, Number of poles: 16, PUSH IN, Size: 6
Documentation & Downloads
Specifications
Additional
| Rated Current | 16 A |
|---|---|
| Rated Voltage (UL/CSA) | 600 V AC/DC |
| Pollution Severity | 3 |
| Rated Impulse Voltage (DIN EN 61984) | 6 kV |
| Insulation Resistance | 109 |
| Pollution Severity | 3 |

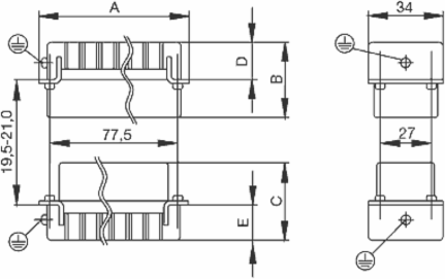

| Dimensions | 84.5 mm x 34.3 mm x 34 mm |
| Width | 34 mm |
| Net Weight | 78 g |
| Wire Connection Cross Section, finely stranded, max. | 2.5 mm2 |
| Wire Connection Cross Section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm2 |
| Rated Cross-Section | 4 mm2 |
| Type | Pin |
| Connection Type | PUSH IN |
| Blade Size, Slotted (Screw connection) | SD 0.5 x 3.0 |
| Stripping Length, Rated Connection | 10 mm |
| Tightening Torque, min. PE Connection | 1.2 Nm |
| Material | Copper alloy |
| Surface Finish | Silver passivated |
| Approvals | CSA, cURus, DNV GL, EAC |
| Free from Halogens | Yes |
| Colour | beige |
| Series | HE |
| ETIM 7.0 | EC000438 |
| eClass 9.0 | 27-44-02-05 |
| eClass 10.0 | 27-44-02-05 |
| REACH SVHC | Lead 7439-92-1 |
| Rated Voltage | 500 V |
|---|---|
| Number of Poles | 16 |
| Limit Temperature | -40 C to 125 C |
| Volume Resistance | 2 m |
| Insulation Strength | 1010 |
| Size | 6 |
| Height | 34.3 mm |
| Depth | 84.5 mm |
| Wire Connection Cross Section, finely stranded, min. | 0.5 mm2 |
| Wire Connection Cross Section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm2 |
| Wire Cross Section, AWG (PE) | AWG 12 to AWG 20 |
| Fixing Screw | M4 |
| Product Type | Insert |
| Blade Size, Crosshead | size PH1 |
| Blade Size, Slotted (PE connection) | SD 0.8 x 4.0 |
| Stripping Length, PE Connection | 10 mm |
| Tightening Torque, max. PE Connection | 1.5 Nm |
| Insulating Material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| UL 94 Flammability Rating | V-0 |
| RoHS Compliance | Compliant |
| Low Smoke | Yes (DIN EN 45545-2) |
| Product Family | HDC insert |
| UNSPSC | 30-21-18-01 |
| ETIM 6.0 | EC000438 |
| eClass 9.1 | 27-44-02-05 |
| UL File Number Search | E92202 |
