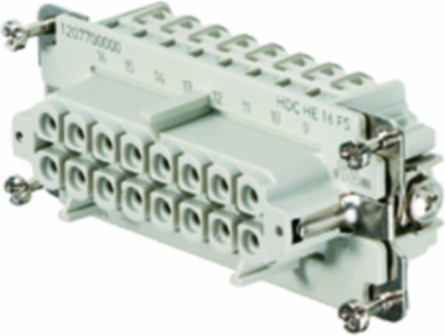

Weidmuller 1207700000 HDC HE 16 FS
- MPN: 1207700000
- PPN: WDM-1207700000
CAD
$19.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HDC insert, Female, 500 V, 16 A, Number of poles: 16, Screw connection, Size: 6
Documentation & Downloads
Specifications
General Data
| Conductor cross-section | 2.5 mm² |
|---|---|
| Insulating material group | IIIa |
| Material | Copper alloy |
| Min. torque for main contact | 0.5 Nm |
| Plugging cycles, silver | ≥ 500 |
| Rated current (DIN EN 61984) | 16 A |
| Rated voltage (DIN EN 61984) | 500 V |
| Series | HE |
| Surface finish | Silver passivated |
| UL 94 flammability rating | V-0 |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
|---|---|
| Insulation strength | 1010 Ω |
| Max. torque for main contact | 0.55 Nm |
| Number of poles | 16 |
| Pollution severity | 3 |
| Rated impulse voltage (DIN EN 61984) | 6 kV |
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Size | 6 |
| Type | Female |
| Volume resistance | ≤ 2mΩ |
Approvals
| Approvals | CSA, DNV GL, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 34 mm |
|---|---|
| Height | 35.2 mm |
| Depth | 84.5 mm |
| Net weight | 100 g |
| Width (inches) | 1.339 inch |
|---|---|
| Height (inches) | 1.386 inch |
| Depth (inches) | 3.327 inch |
General Descriptions
| Number of poles | 16 |
|---|
| Size | 6 |
|---|

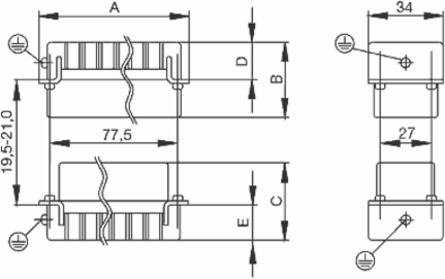

Dimensions
| Height of socket | 35.2 mm |
|---|
| Total length base | 84.5 mm |
|---|
Version
| Blade size | size PZ0 |
|---|---|
| Clamping screw | M 3 |
| Conductor cross-section, min. | 0.5 mm² |
| Max. torque for main contact | 0.55 Nm |
| Size | 6 |
| Surface finish | Silver passivated |
| Volume resistance | ≤ 2mΩ |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross-section, solid, min. | 0.5 mm² |
| Blade size, slotted (screw connection) | SD 0.6 x 3.5 |
|---|---|
| Conductor cross-section, max. | 2.5 mm² |
| Material | Copper alloy |
| Min. torque for main contact | 0.5 Nm |
| Stripping length, rated connection | 9 mm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire cross-section, solid, max. | 2.5 mm² |
Material
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
|---|---|
| Material | Copper alloy |
| UL 94 flammability rating | V-0 |
|---|
Connection Data
| Conductor cross-section, min. | 0.5 mm² |
|---|---|
| Wire connection cross section AWG, min. | AWG 20 |
| Conductor cross-section, max. | 2.5 mm² |
|---|---|
| Wire connection cross section AWG, max. | AWG 14 |
Connection Data Pe
| Blade size, crosshead | size PH1 |
|---|---|
| Connection type PE | Screw connection |
| Rated cross-section | 4 mm² |
| Tightening torque, max. PE connection | 1.5 Nm |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire cross section, AWG (PE), max. | AWG 12 |
| Wire cross-section, solid, max. | 2.5 mm² |
| Blade size, slotted (PE connection) | SD 0.8 x 4.0 |
|---|---|
| Fixing screw | M 4 |
| Stripping length PE connection | 10 mm |
| Tightening torque, min. PE connection | 1.2 Nm |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross section, AWG (PE), min. | AWG 20 |
| Wire cross-section, solid, min. | 0.5 mm² |
Classifications
| ETIM 6.0 | EC000438 |
|---|---|
| eClass 9.0 | 27-44-02-05 |
| eClass 10.0 | 27-44-02-05 |
| ETIM 7.0 | EC000438 |
|---|---|
| eClass 9.1 | 27-44-02-05 |
| UNSPSC | 30-21-18-01 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Design
| Product family | HDC insert |
|---|---|
| Type | Female |
| Blade size, crosshead | size PH1 |
| Product type | Insert |
|---|---|
| Type of connection | Screw connection |
Temperatures
| Limit temperature | -40 °C ... 125 °C |
|---|
