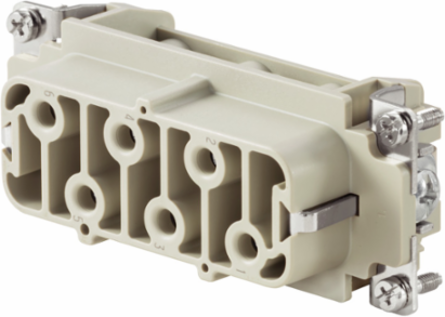

Weidmuller 1498900000 HDC HSB 6 FS
Weidmuller 1498900000 HDC HSB 6 FS
- MPN: 1498900000
- PPN: WDM-1498900000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$47.87/ EA
Description
HDC insert, Female, 400 V, 35 A, Number of poles: 6, Screw connection, Size: 6
Specifications
General Data
- Conductor cross-section
- 6 mm²
- Insulating material group
- IIIa
- Material
- Copper alloy
- Min. torque for main contact
- 1.2 Nm
- Plugging cycles, silver
- ≥ 500
- Rated current (DIN EN 61984)
- 35 A
- Rated voltage (DIN EN 61984)
- 400 V
- Series
- HSB
- Surface finish
- Silver passivated
- UL 94 flammability rating
- V-0
Insulating materialPC glass-fibre reinforced (UL-listed and railway-certified)
Insulation strength1010 Ω
Max. torque for main contact1.5 Nm
Number of poles6
Pollution severity3
Rated impulse voltage (DIN EN 61984)6 kV
Rated voltage according to UL/CSA600 V AC/DC
Size6
TypeFemale
Volume resistance≤ 2mΩ
Approvals
- Approvals
- CSA, cURus, EAC
- UL File Number Search
- E92202
ROHSConform
Dimensions And Weights
- Width
- 34 mm
- Height
- 35.6 mm
- Depth
- 84.5 mm
- Net weight
- 87 g
Width (inches)1.339 inch
Height (inches)1.402 inch
Depth (inches)3.327 inch
General Descriptions
- Number of poles
- 6
Size6
Dimensions
- Height of socket
- 35.6 mm
Total length base84.5 mm
Version
- Blade size
- size PZ1
- Clamping screw
- M 4
- Conductor cross-section, min.
- 0.5 mm²
- Max. torque for main contact
- 1.5 Nm
- Size
- 6
- Surface finish
- Silver passivated
- Volume resistance
- ≤ 2mΩ
- Wire connection cross section AWG, min.
- AWG 20
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Blade size, slotted (screw connection)SD 0.8 x 4.0
Conductor cross-section, max.6 mm²
MaterialCopper alloy
Min. torque for main contact1.2 Nm
Stripping length, rated connection11 mm
Type of connectionScrew connection
Wire connection cross section AWG, max.AWG 10
Wire connection cross section, finely stranded, max.6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Wire cross-section, solid, max.6 mm²
Material
- Insulating material
- PC glass-fibre reinforced (UL-listed and railway-certified)
- UL 94 flammability rating
- V-0
Colourbeige
MaterialCopper alloy
Connection Data
- Conductor cross-section, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 20
Conductor cross-section, max.6 mm²
Wire connection cross section AWG, max.AWG 10
Connection Data Pe
- Blade size, crosshead
- Gr. PZ2
- Connection type PE
- Screw connection
- Rated cross-section
- 6 mm²
- Tightening torque, max. PE connection
- 2.5 Nm
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire cross section, AWG (PE), max.
- AWG 10
- Wire cross-section, solid, max.
- 6 mm²
Blade size, slotted (PE connection)1 x 5.5
Fixing screwM 5
Stripping length PE connection10 mm
Tightening torque, min. PE connection2 Nm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.6 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross section, AWG (PE), min.AWG 20
Wire cross-section, solid, min.0.5 mm²
Classifications
- ETIM 6.0
- EC000438
- eClass 9.0
- 27-44-02-05
- eClass 10.0
- 27-44-02-05
ETIM 7.0EC000438
eClass 9.127-44-02-05
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Design
- Product family
- HDC insert
- Type
- Female
- Blade size, crosshead
- Gr. PZ2
Product typeInsert
Type of connectionScrew connection
Temperatures
- Limit temperature
- -40 °C ... 125 °C
