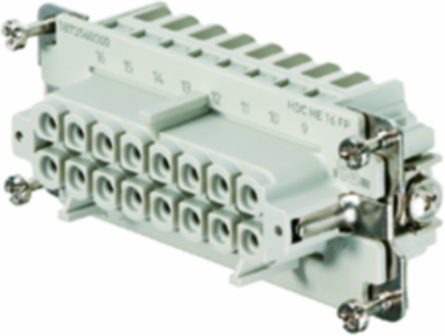

Weidmuller 1873560000 HDC HE 16 FP
- MPN: 1873560000
- PPN: WDM-1873560000
CAD
$15.81
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDC insert, Female, 500 V, 16 A, Number of poles: 16, PUSH IN, Size: 6
Documentation & Downloads
Specifications
Additional
| Rated Current | 16 A |
|---|---|
| Rated Voltage (UL/CSA) | 600 V AC/DC |
| Pollution Severity | 3 |
| Tightening Torque (PE connection) | 1.2 1.5 Nm |

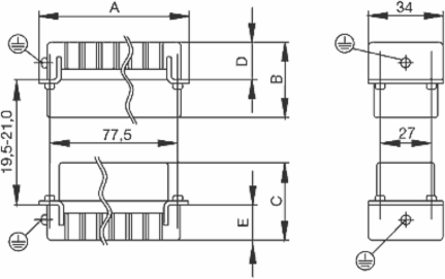

| Dimensions | 84.5 mm x 33.8 mm x 34 mm (Depth x Height x Width) |
| Height | 33.8 mm (1.331 inch) |
| Net Weight | 73.04 g |
| Type of Connection | PUSH IN |
| Insulating Material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Flammability Rating | UL 94 V-0 |
| Color | Beige |
| Series | HE |
| Rated Voltage | 500 V AC/DC |
|---|---|
| Number of Poles | 16 |
| Rated Impulse Voltage | 6 kV |
| Wire Cross Section Range | 0.5 2.5 mm2 (solid and stranded) |
| Width | 34 mm (1.339 inch) |
| Depth | 84.5 mm (3.327 inch) |
| Size | 6 |
| Material | Copper alloy |
| Surface Finish | Silver passivated |
| Compliance | RoHS Compliant, UL Listed, cURus Certified, CSA, DNV GL, EAC |
| Product Type | Insert |
| Product Family | HDC insert |
