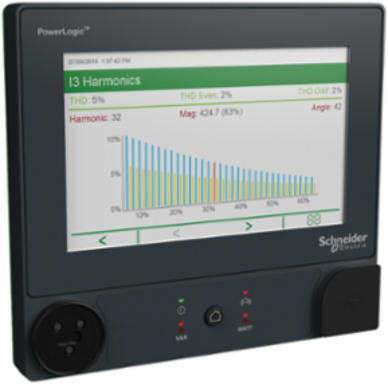

Schneider Electric METSERD192 PowerLogic Remote Display, 7 Inch Color LCD Touchscreen, IP65
- MPN: METSERD192
- PPN: SCH-METSERD192
CAD
$2297.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Display (RD192) compatible with PowerLogic ION9000 series. 192mm by 192mm color graphical LCD with touchscreen interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: LCD touchscreen, 7 inches, 800 pixels by 480 pixels. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP65 (UL type 12) rating.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Canada, China, France, Mexico, Sweden, United States |
|---|
Physical Attributes
| Display Size | 7 inch |
|---|---|
| Display Color | color |
| Projecting Depth | 27.5 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | RESIDENTIAL, COMMERCIAL, INDUSTRIAL |
| Control Type | 1 x push-button, touch screen |
| Certificate Agency | IEC, IEEE |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.9 kg CO2 eq., 0.9274 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 589 kg CO2 eq., 588.51 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Manufacturing Carbon Footprint | 588.51 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2102006 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1840 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | human-machine dialogue application |
| Display Type | LCD touch screen |
| Local Signalling | status LED Green)alarm LED Red) |
| Mounting Mode | flush-mounted |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | Mounting Hardware |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2102006EN |
| Pep Verification Date | 2021-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity Mix; AC; 1kV - 60kV; CH |
| Height Nominal | 175 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Acidification Of Soil And Water (Kg.Equivalent.So2) Manufacturing [A1-a3] | 0.8151 |
| Air Pollution (M3) Distribution [A4] | 2.9217 |
| Air Pollution (M3) End Of Life [C1-c4] | 18.56 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 1.8639 |
| Global Warming (Kg.Equivalent.Co2) End Of Life [C1-c4] | 0.9274 |
| Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 2.5079 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 95.379 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 2.4703 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 2.4726 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1428.9128 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 16.333 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 2.4703 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 8.8717 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1428.9128 |
| Water Pollution (M3) Manufacturing [A1-a3] | 43638 |
| Water Pollution (M3) Installation [A5] | 3.9555 |
| Customs Code | 8528592500 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Residential, Commercial, Industrial |
| Information Displayed | energy consumption, voltage, power, harmonic distortion, frequency, current, system alarm, I/O status |
| Carbon Footprint Of The Distribution Phase [A4] | 0.067386, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.026463, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 44 kg CO2 eq., 44.43360600000001 |
| Local Publishable Date | 2025-09-30 |
| Stocking Flag | Y |
| Serviceability | No |
| End Of Life Carbon Footprint | 0.9274 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 3 |
| Function Option | Standard |
| Connector Type | RJ45 |
| Display Resolution | 800 x 480 pixels |
| Energy Efficiency Optimized | False |
| Messages Display Capacity | graphic objects (bargraph, button, light...) |
| Mounting Support | framework remote display |
| Product Or Component Type | remote display |
| Range | PowerLogic |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 634 kg CO2 eq. |
| Display Color | color |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Display (RD192) is 192mm by 192mm color graphical LCD with a touchscreen interface. The information available from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms, and input-output status. Auxiliary control power (Not required for PoE applications): 24 V DC ± 20% DC burden 10 W max.The Energy consumption is 10W power in active mode. A typical lifetime of the display is 10 years. |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 545.748 |
| Energy Model - Installation [A5] | Electricity Mix; AC; 1kV - 60kV; CH |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; AC; 1kV - 60kV; CH |
| Width Nominal | 197 mm |
| Package Weight(Lbs) | 1.6 kg |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 47775 |
| Air Pollution (M3) Installation [A5] | 1.1801 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 7514.8 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 588.51 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 452.59 |
| Net Use Of Fresh Water (M3) Manufacturing [A1-a3] | 7.7777 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 8033.2 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 8151.1 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 117.87 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 16.333 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 8016.9 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 8.8717 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 109 |
| Water Pollution (M3) Total Life Cycle | 44704.5374 |
| Water Pollution (M3) Distribution [A4] | 11.08 |
| Water Pollution (M3) End Of Life [C1-c4] | 163.54 |
| Other Technical Guide Name | PLSED310106EN |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 633.9648550000002 |
| Environmental Disclosure | ENVPEP2102006EN |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2102006EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2102006 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 2021-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | remote display |
|---|
| Provided Equipment | Mounting Hardware |
|---|
ETIM
| ETIM 8 | EC000783 |
|---|
| ETIM 9 | EC000783 |
|---|
