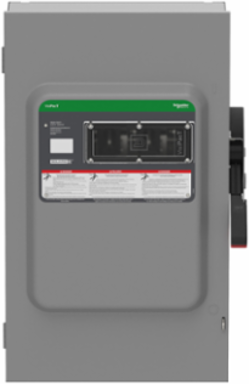

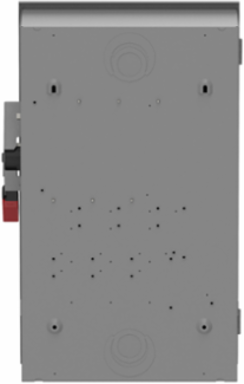

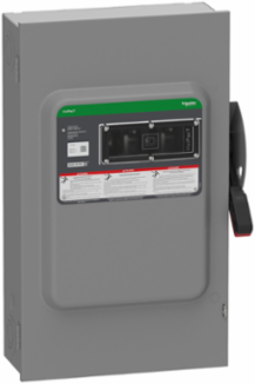

Square D VHU364 Heavy Duty Safety Switch, 600V, 200A, 3 Pole, NEMA 1, 28.93 Inch Height

MPN: VHU364
PPN: SCH-VHU364
UNSPSC: 39122205

$974.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for durability and reliability, this heavy-duty safety switch from Schneider Electric is designed to handle demanding electrical applications with ease. With a robust capacity of 200 amps and a voltage rating of up to 600 volts, it ensures safe and efficient power distribution in various settings. The three-pole configuration enhances versatility, while the NEMA 1 enclosure provides adequate protection for indoor use. Measuring an impressive 28.93 inches in height, this safety switch makes a practical choice for facilities that require secure and dependable electrical control solutions.

Features

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
Visipact safety switches come with a viewing window for quick visual verification of switch position
Designed to have a mechanical endurance three times greater than NEMA standards
QR code allow quick access to critical ratings and other useful product documentation
.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Depth	8.6 in

Weight	24700 g

Complementary Attributes

Line Rated Current	200 A

Ue Rated Operational Voltage	600 V AC/DC

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Motor Power Hp	50 hp at 600 V DC, 15 hp at 240 V AC 50/60 Hz for 1 phase motors60 hp at 240 V AC 50/60 Hz for 3 phase motors50 hp at 480 V AC 50/60 Hz for 1 phase motors, 125 hp at 480 V AC 50/60 Hz for 3 phase motors, 50 hp at 600 V AC 50/60 Hz for 1 phase motors, 150 hp at 600 V AC 50/60 Hz for 3 phase motors, 40 hp at 250 V DC
Carbon Footprint Of The End Of Life Phase C1 To C4	59 kg CO2 eq., 59.424207170592375
Carbon Footprint Of The Manufacturing Phase A1 To A3	145 kg CO2 eq., 144.9134911837968
Local Data Status	Publishable
Pre Comm Date	2023-04-05
Device Type	LV equipment - LV fuse - switch
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2345
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	6 AWG...250 kcmil copper or aluminium
Device Composition	field installed kit available
Electrical Connection	lugs
Number Of Poles	3
Product Or Component Type	Single Throw Safety Switch
Series Name	heavy duty
Software Version	v5.9.4
Tightening Torque	275-275 lbf.in 13.3-127 mm² (6 AWG...250 kcmil)
Wiring Configuration	3-wire
Data Source	extrapolated product
Width Nominal	16.61 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	7.456202633548866, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.38535143792524496, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	60 kg CO2 eq., 59.54437565158782
Local Publishable Date	2026-06-23
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	heavy application
Disconnector Device Type	non-fusible disconnect
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Services	field installed kit available
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	272 kg CO2 eq.
Database Version	2022-01
Height Nominal	28.93 in
Certificate Agency	UL listed file E2875
Customs Code	8536509045
Functional Unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600 V and rated current 200 A.This function is provided for 20 years.The product qualifies for the standards UL50E Type 12,UL98 & NEMA KS1.
Functional Unit Unit	Unit
Recyclability Potential In %	88

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	271.72362807745105
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2303037EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Reach Free Shvc	Yes
China Rohs Regulation	X
Environmental Disclosure	ENVPEP2303037EN
Nema Degree Of Protection	NEMA 1 steel
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-10-24
Psr Version	PSR-0005-ed2-2016 03 29
