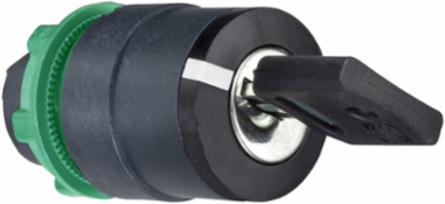

Schneider Electric ZB5AG7D Harmony XB5 22 mm 3 Position Spring Return Key Selector Switch Head
- MPN: ZB5AG7D
- PPN: SCH-ZB5AG7D
CAD
$123.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This head with key (key no.8D1) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Key Withdrawal Position
- center
- Range Of Product
- Harmony XB5
- Operator Profile
- black key switch
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for key selector switch
- Device Short Name
- ZB5
- Head Type
- standard
Sale Per Indivisible Quantity1
Bezel Materialdark grey plastic
Operator Position Information3 positions +/- 45°
Type Of Operatorto centre spring return
Shape Of Signaling Unit Headround
Type Of KeylockDom 8D1
Complementary
- Mechanical Durability
- 1000000 cycles
- Station Name
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Depth
- 72 mm
- Cad Overall Height
- 29 mm
Electrical Composition CodeC4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Cad Overall Width29 mm
Net Weight0.057 kg
Device Presentationbasic element
Environment
- Product Certifications
- BV || CSA || DNV || LROS (Lloyds register of shipping) || UL listed || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class II IEC 60536
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of ProtectionIK06 conforming to IEC 50102
Ambient Air Temperature For Storage-40-70 °C
StandardsJIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
