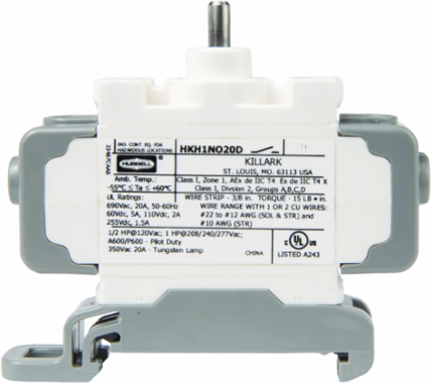

Killark HKH1NO20D Factory Sealed Contact Block 20A N.O. Din Rail Mount, 24-690 AC/DC V
- MPN: HKH1NO20D
- UPC: 783936092652
- PPN: HBL-HKH1NO20D
CAD
$117.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
HKH 20A Factory Sealed Contact Block - NO Contact - Din Rail Mount
Features
- Explosion Protected Din Rail contact block 690VAC N.O. & N.C. capable of 20 Amps for Switching Duty and HP Ratings up to 1HP.
- Killark HKH HAZCON™ Series Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications, ON/OFF functions for Lighting Circuits and more. Utilized in Class 1 Division 2, Class 1 Zone 1 areas where Type 3, 4, 4X, 12 and 13 weather-ingress ratings are required for indoor and outdoor use. Certified for use in the European Union with ratings for IECEx and ATEX in addition to IP66 water ingress protection.
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zones 1 & 2
- Operating Temperature Range Celcius
- -40°C to 55°C
- Action
- Momentary
- Application
- Contact block shall be installed in a Class I, Zone 1, AEx e II/Ex e IIC increased safety enclosure with a minimum IP54 rating or a Class I, Zone 1, AEx d IIC/Zone 21, Aex tb minimum IP64 rating, where the suitability is determined in the end application.
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D25D250
- Series
- HKH Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936092652
- NAICS Code
- 335313A111
Country of OriginChina
Horsepower - Maximum1
Voltage Rating24-690 AC/DC V
Amperage Rating20 A
Frequency Rating50/60 Hz
Description - InvoiceCONTACT BLCK, FACT SEALED N.O. DRM, 20A
Harmonization Code8536909999
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20
Certifications
- EU RoHS Indicator
- Contact Manufacturer
