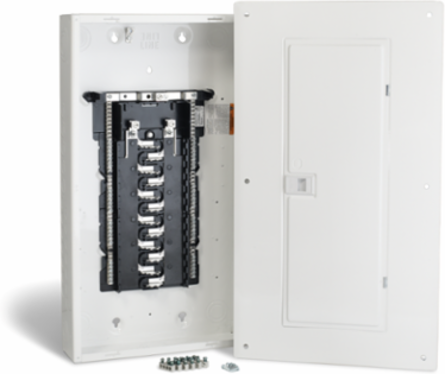

Schneider Electric CHOM2448L125GC Homeline Loadcentre 1 Phase 125A 48 Circuits NEMA 1
- MPN: CHOM2448L125GC
- UPC: 785901614791
- PPN: SCH-CHOM2448L125GC
CAD
$168.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main lugs that is rated at 125 A single phase. This CHOM load center provides a 10 kA breaking capacity. This system provides 24 spaces in a NEMA 1 enclosure. The electrical connections are main lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 26.04 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- Designed with a high-density interior, this load center provides 24 full-sized spaces that can expand to 48 circuits through the use of tandem breakers. This "future-proof" configuration allows homeowners and contractors to easily add dedicated lines for EV chargers, heat pumps, or smart home upgrades without the massive expense of replacing the entire panel later.
- This HomelineTM panel features an integrated neutral bar that allows compatible CAFI and GFI breakers to "plug on" directly to the neutral. By eliminating the need for traditional pigtail wires, you achieve a significantly cleaner, more organized gutter space that improves airflow and slashes wiring time by up to 25%, making it the top choice for professional electricians seeking a "pro-install" look.
- Rated for 125 Amps, this main lug load center is specifically engineered for use as a sub-panel downstream from a main disconnect. It is the ideal solution for detached garages, workshops, or secondary legal suites, providing a dedicated distribution point that ensures local power control and simplifies troubleshooting for multi-unit dwellings.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current10 kA
[In] Rated Current125 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 24
- Electrical Connection
- lugs
- Awg Gauge
- AWG 6...AWG 2/0 aluminum/copper
- Number Of Circuits
- 48
- Loadcentre Type
- Main lugs
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces24
Device Compositiongrounding bar included (not installed)
Box Number8
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
