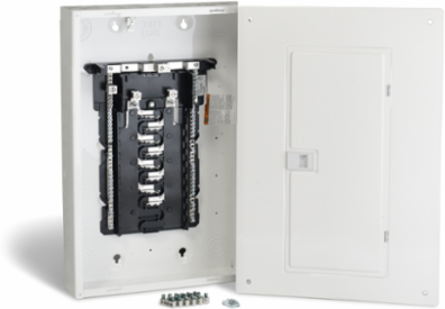

Schneider Electric CHOM1632L125GC HomeLine Load Centre 125A 32 Circuit Indoor NEMA 1

HomeLine Load Centre 125A 32 Circuit Indoor NEMA 1
  • MPN: CHOM1632L125GC
  • UPC: 785901687986
  • PPN: SCH-CHOM1632L125GC

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$136.48/ EA

    Description

    CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main lugs that is rated at 125 A single phase. This CHOM load center provides a 10 kA breaking capacity. This system provides 16 spaces in a NEMA 1 enclosure. The electrical connections are main lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 26.04 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.

    Specifications

    Amperage
    125 A
    Number of Circuits
    32
    Short-circuit Current Rating
    10 kA
    Ambient Air Temperature Range
    -5 B0C to 40 B0C (23B0F to 104B0F)
    Electrical Connection
    Main lugs
    Height
    26.04 in
    Depth
    3.75 in
    Cover Type
    Combination flush/surface cover
    Grounding Bar
    Included but not installed
    Voltage120/240 V AC
    Number of Spaces16
    PhaseSingle phase
    Mounting ModeWall mount
    Wire RangeAWG 6 to AWG 2/0 aluminum/copper
    Width14.25 in
    MaterialTin plated aluminum busbar, welded sheet steel enclosure
    Cover ColorWhite
    Product CertificationCSA Certified
