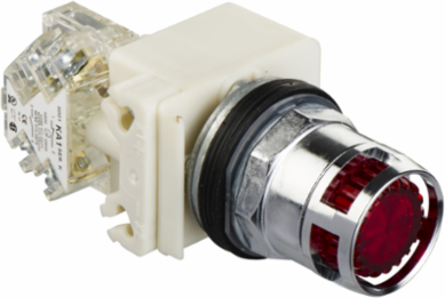

Schneider Electric 9001K3L35RH13 Illuminated Push-Button, 30mm, Spring Return, Red, IP66, 24-28V
- MPN: 9001K3L35RH13
- UPC: 785901028598
- PPN: SCH-9001K3L35RH13
CAD
$231.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Physical Attributes
- Cad Overall Depth
- 106 mm
- Cad Overall Width
- 54 mm
Cad Overall Height42 mm
Size30 mm
Complementary Attributes
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13
Important Information Attributes
- Light Block Supply
- direct, full voltage
- Operator Profile
- flush, red flush, unmarked
- [Icm] Rated Short-circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA
- Terminals Description Iso N°1
- (13-14-11-12)OF, (13-14-11-12)OF
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bezel Material
- metal
- Compatibility Code
- 9001K
- Contacts Material
- silver alloy contacts
- Device Short Name
- 9001K
- Mounting Diameter
- 30 mm
- Operator Additional Information
- metal guard
- Positive Opening
- without
- Product Or Component Type
- illuminated push-button
- Range Of Product
- Harmony 9001K
- Shape Of Screw Head
- cross slotted
- Shock Resistance
- 50 gn IEC 60068-2-27
- Tightening Torque
- 0.8-0.8 N.m IEC 60947-1
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2503027EN
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Short-circuit Protection
- 10 A cartridge fuse IEC 60947-5-1
- Package Weight(Lbs)
- 195.045 g
- Warranty (In Months)
- 18
Light Sourceincandescent bulb, incandescent
Certificate AgencyNEMA, UL 508
[Us] Rated Supply Voltage24...28 V, 24...28 V AC/DC
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Product Kit IdentifierN
Bulb BaseBA 9s
Contact Operationstandard
Contacts Type And Composition1 C/O
Mechanical Durability5000000 cycles
Operating Positionany position
Overvoltage Categoryclass II conforming to IEC 61140
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shape Of Signaling Unit Headoctagonal
Sustainable PackagingYes
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ith] Conventional Free Air Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
