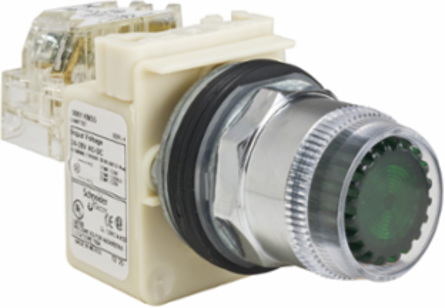

Schneider Electric 9001K1L35GH13 Harmony 9001K Green Illuminated Push-Button, 30mm, Spring Return, 24-28V
- MPN: 9001K1L35GH13
- UPC: 785901027294
- PPN: SCH-9001K1L35GH13
- UNSPSC: 39122216
CAD
$259.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Size | 30 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current | 10 A, AC-15, 10 A, DC-13 |
|---|
| Us Rated Supply Voltage | 24...28 V24...28 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Light Block Supply | direct, full voltage |
| Certificate Agency | UL listed file E42259 CCN NKCR, CSA LR 25490 class 3211 03, NEMA, CE |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Bezel Material | metal |
| Contact Operation | standard |
| Device Short Name | K |
| Operating Position | any position |
| Operator Profile | flushgreen flush |
| Product Or Component Type | illuminated push-button |
| Returnability | Yes |
| Type Of Operator | spring return |
| Connections Terminals | screw clamp terminals |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Light Source | bulb, incandescent |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bulb Base | BA 9s |
| Contacts Type And Composition | 1 C/O |
| Mounting Diameter | 30 mm |
| Operator Additional Information | plastic guard |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony 9001K |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Cap/Operator Or Lens Colour | green |
| Customs Code | 8536509065 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Nema Degree Of Protection | NEMA 3R/6/13 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
General Attributes
| Product Or Component Type | illuminated push-button |
|---|
| Range Of Product | Harmony 9001K |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|---|
| ETIM 10 | EC001028 |
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
