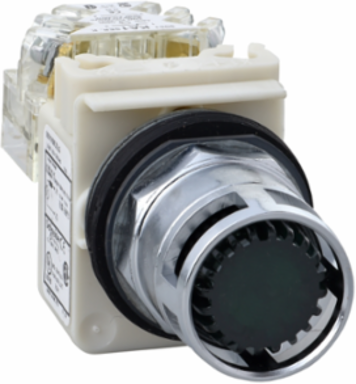

Schneider Electric 9001K3L1GH13 Harmony Illuminated Push Button, 30 mm, Green, Spring Return, 110...120V
- MPN: 9001K3L1GH13
- UPC: 785901028376
- PPN: SCH-9001K3L1GH13
CAD
$269.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel, is supplied with a 110V AC transformer and has 1 x NO + 1 x NC contacts. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes
- Size
- 30 mm
Complementary Attributes
- Rated Breaking Capacity
- 1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Light Block Supply
- 6 V, via integral transformer
- Operator Profile
- flush, green flush, unmarked
- [Icm] Rated Short-circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA, 12 kA 600 V DC-13, 7200 VA0.1 kA 480 V AC-150.27 kA 240 V AC-150.55 kA 120 V AC-15
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.6178246269074241
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.5347543626963185
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Bulb Base
- BA 9s
- Contact Operation
- standard
- Contacts Type And Composition
- 1 C/O
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Overvoltage Category
- class II conforming to IEC 61140
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- No
- Shape Of Signaling Unit Head
- octagonal
- Software Version
- v6.2.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 62 kg CO2 eq.
- Vibration Resistance
- 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2503027EN
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ie] Rated Operational Current
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Us] Rated Supply Voltage
- 110...120 V110...120 V AC
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Light Sourcebulb, incandescent
Certificate AgencyNEMA, UL 508
Carbon Footprint Of The Distribution Phase [A4]0.15212565622290494, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0020754272023703886, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]60 kg CO2 eq., 59.82673420507562
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialmetal
Compatibility Code9001K
Contacts Materialsilver alloy contacts
Device Short Name9001K
Mounting Diameter30 mm
Operator Additional Informationmetal guard
Positive Openingwithout
Product Or Component Typeilluminated push-button
Range Of ProductHarmony 9001K
Shape Of Screw Headcross slotted
Shock Resistance50 gn IEC 60068-2-27
Supply Frequency50...60 Hz
Tightening Torque0.8-0.8 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %49
[Ith] Conventional Free Air Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Cap/Operator Or Lens Colourgreen
Short-circuit Protection10 A cartridge fuse IEC 60947-5-1
Package Weight(Lbs)281.227 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Nema Degree Of Protection
- NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint62.133514278104634
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
