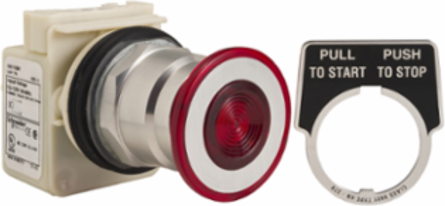

Schneider Electric 9001KR8P1RH25 Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 3 positions, return to center, 110...120V, 1NC late + 1NC

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 3 positions, return to center, 110...120V, 1NC late + 1NC
  • MPN: 9001KR8P1RH25
  • UPC: 785901821076
  • PPN: SCH-9001KR8P1RH25

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$314.43/ EA

Description

This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It uses screw-clamp terminals and has 2 x NC contact. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Specifications

Complementary

[Us] Rated Supply Voltage
110...120 V
Bezel Material
metal
Contact Operation
late-break
Light Source
incandescent bulb
Mounting Diameter
30 mm
Operator Profile
mushroom Ø 41 mm
Cap/Operator Or Lens Colour
red
Supply Frequency
50...60 Hz
Device Presentation
complete product
Contacts Type And Composition1 NC late break + 1 NC
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Operator Position Information3 positions
Light Block Supplywithout supply
Light Block Supplyvia integral transformer
Type Of Operatorpull : spring return, center : stay put, push : spring return
Size30 mm
Bulb BaseBA 9s

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP121006EN
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Key Specifications

Operator Additional Information
screw-on plastic
Product Or Component Type
illuminated push-button
Range Of ProductHarmony 9001K
Device Short NameK

Environment

Product Certifications
CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE || NEMA
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
