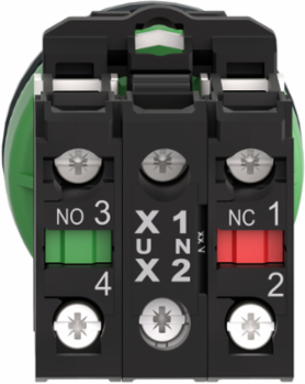

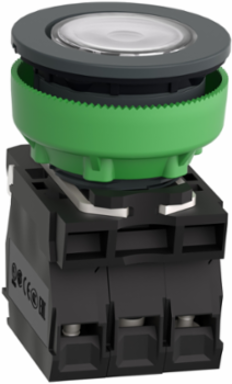

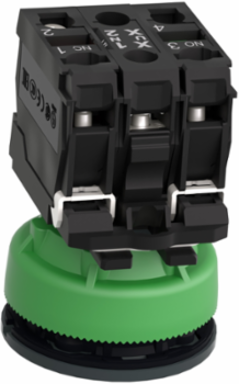

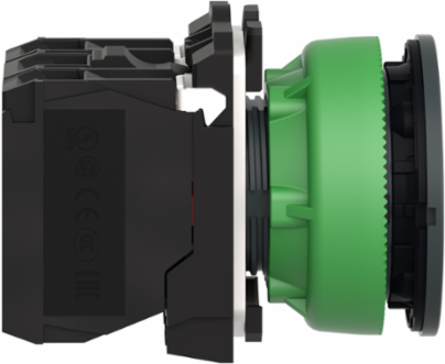

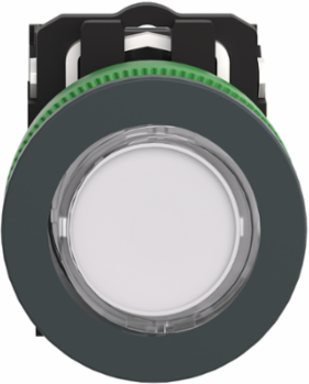

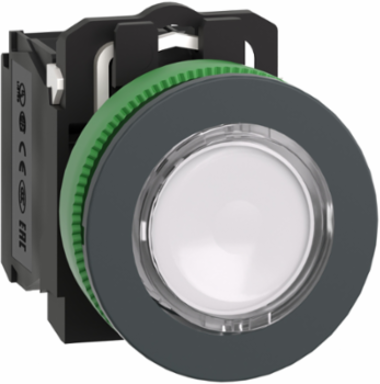

Schneider Electric XB5FW31B5 Illuminated push button, Harmony XB5, white, 30mm, universal LED, 1NO + 1NC, 24V AC DC
- MPN: XB5FW31B5
- PPN: SCH-XB5FW31B5
CAD
$126.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Illuminated push button, Harmony XB5, white, 30mm, universal LED, 1NO + 1NC, 24V AC DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France
Depth55 mm
Physical Attributes
- Cap Operator Or Lens Color
- white
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Force
- 3.5 N NC changing electrical state, 3.8 N
- Cap Operator Or Lens Color
- white
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Terminals Description Iso N°1
- (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0455281287
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.3120608187
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 13 %
- Bulb Base
- integral LED
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Current Consumption
- 18 mA
- Electromagnetic Emission
- class B IEC 55011
- Gcr Bridge
- XB5FWCUST01
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 10000000 cycles
- Operating Travel
- 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
- Operator Profile
- white flush, unmarked
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- illuminated push-button
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 10 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Supply Voltage Num 22 Supply Voltage Num
- 24 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Espagnac (France)
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
- Height Nominal
- 42 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyUL Listed, CSA
[Us] Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]0.0067998363, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0003864421, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]10 kg CO2 eq., 9.9792474725
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content22 %
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB5F
Fixing Collar Materialplastic
Head Typebuilt-in-flush
Light Sourceuniversal LED
Mounting Diameter30.5 mm
Operator Additional Informationwith plain lens
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Signalling Typesteady
Supply Voltage Limits19.2-30 V DC21.6-26.4 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2404014EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Width Nominal36.6 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourwhite
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)61.000 g
Take-backNo
Customs Code8536509031
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.3440226983
- Environmental Disclosure
- ENVPEP2404014EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level13 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2404014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Overview Attributes
- Device Presentation
- complete product
