Schneider Electric XB5AW35B5 Harmony XB5 22mm Orange Illuminated Push Button, 1NO+1NC, 24V AC/DC
Schneider Electric XB5AW35B5 Harmony XB5 22mm Orange Illuminated Push Button, 1NO+1NC, 24V AC/DC
- MPN: XB5AW35B5
- PPN: SCH-XB5AW35B5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$106.62/ EA
Description

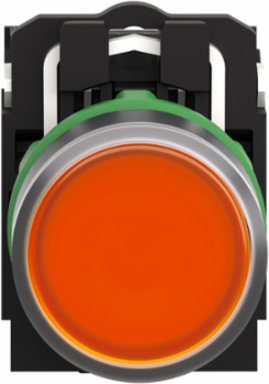

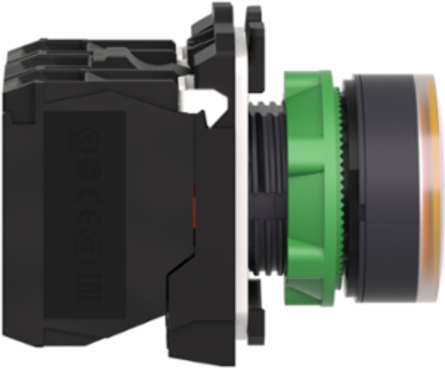

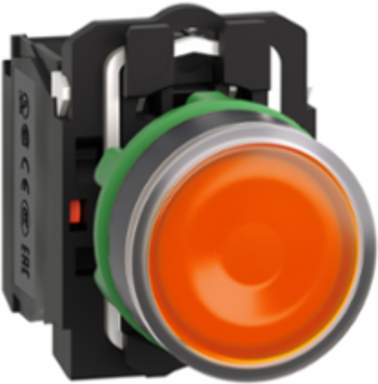

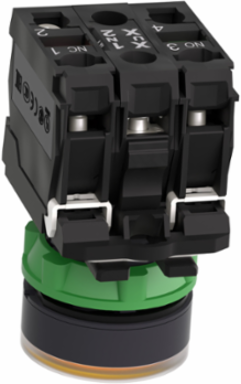

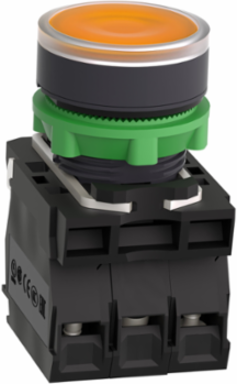

This Harmony XB5, illuminated modular orange push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Specifications
Environment
- Product Certifications
- UL listed || GL || LROS (Lloyds register of shipping) || DNV || CSA || BV
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- UL 508 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK05 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP69 || IP69K || IP67
Overvoltage Categoryclass II IEC 60536
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Contacts Usage
- standard contacts

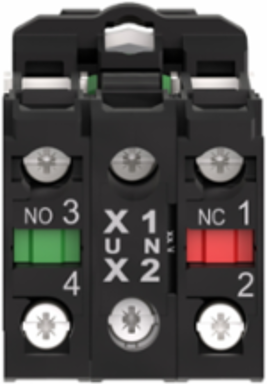

- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Device Presentation
- complete product
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Surge Withstand
- 1 kV IEC 61000-4-5
- Signalling Type
- steady
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

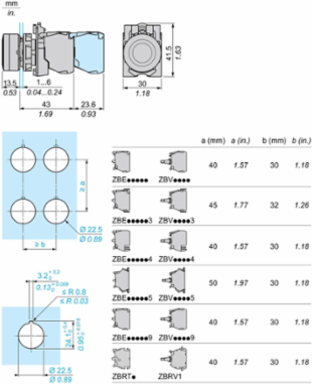

- Depth
- 57 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height42 mm
Operating Force3.5 N NC changing electrical state || 3.8 N
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Net Weight0.056 kg
Current Consumption18 mA
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Service Life100000 h at rated voltage and 25 °C
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability10000000 cycles
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Specifications
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
- Range Of Product
- Harmony XB5
- Mounting Diameter
- 22 mm
- Product Or Component Type
- illuminated push-button
- Cap/Operator Or Lens Colour
- orange
- Head Type
- standard
- Contacts Type And Composition
- 1 NO + 1 NC
- Bezel Material
- dark grey plastic
- Operator Profile
- orange flush, unmarked
- Bulb Base
- integral LED
Operator Additional Informationwith plain lens
Light Sourceuniversal LED
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Fixing Collar Materialplastic
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Sale Per Indivisible Quantity1
Contact Operationslow-break
Device Short NameXB5
