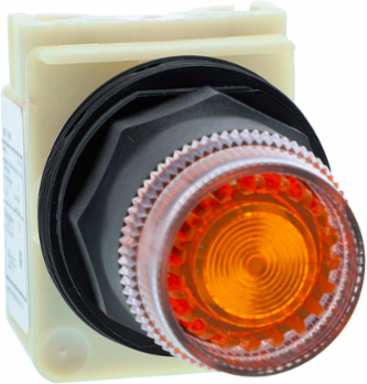

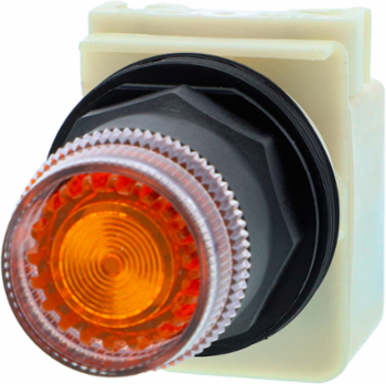

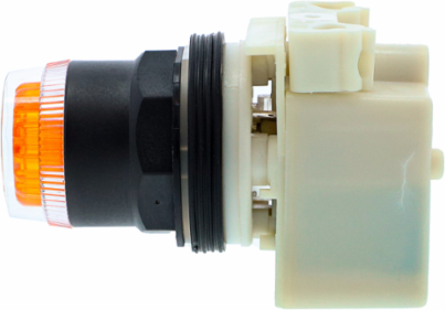

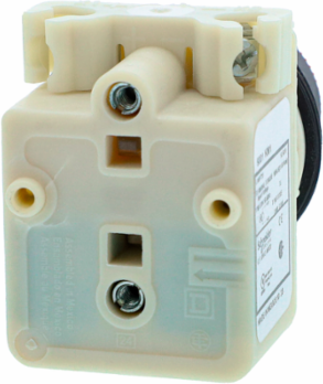

Schneider Electric 9001SK1L1A Harmony 9001SK 30 mm Amber Illuminated Push Button, Spring Return, 110-120V

MPN: 9001SK1L1A
UPC: 785901040330
PPN: SCH-9001SK1L1A

$214.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001SK, modular illuminated flush amber push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA C22.2 No 14, IEC 60947-5-1, JIS C 852, JIS C 4520, IEC 60947-5-4, IEC 60947-1, UL 508
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	plastic
Contacts Type And Composition	without contact block
Light Block Supply	via integral transformer
Mechanical Durability	5000000 cycles
Operator Additional Information	plastic guard
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001SK
Supply Frequency	50...60 Hz
Type Of Operator	spring return
Pep Code	ENVPEP2503027EN
Cap/Operator Or Lens Colour	amber
Package Weight(Lbs)	181.437 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	BA 9s
Device Short Name	9001SK
Light Source	incandescent bulb
Mounting Diameter	30 mm
Operator Profile	flush
Product Or Component Type	head for illuminated push-button
Returnability	No
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage	110...120 V
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8531809026

Environment Attributes Main

Ip Degree Of Protection	IP66, IP65/IP66
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Nema Degree Of Protection	NEMA 3R/4X/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
