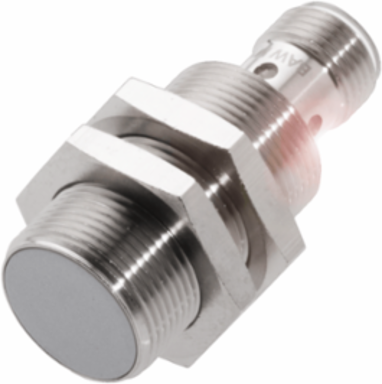

Balluff BAW M18ME-ICC50B-S04G Inductive Distance Sensor Ø18 x 44.5 mm, 1-5 mm Range, IP67, 10-30 VDC
Balluff BAW M18ME-ICC50B-S04G Inductive Distance Sensor Ø18 x 44.5 mm, 1-5 mm Range, IP67, 10-30 VDC
- MPN: BAW M18ME-ICC50B-S04G
- PPN: BAL-BAW001U
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$442.30/ EA
Description
The Balluff inductive distance sensor is engineered for precision and reliability in various industrial applications. With a compact design of Ø 18 x 44.5 mm, this sensor offers a sensing range of 1-5 mm and operates effectively within an ambient temperature range of -10 to 70 °C. Its robust construction features a nickel-plated brass housing and a PBT sensing surface, ensuring durability and resistance to harsh environments with an IP67 rating. Designed for flush mounting, it provides a 4-20 mA analog output and is equipped with a M12x1 connector for easy integration into your systems. This sensor is also compliant with CE, cULus, EAC, and WEEE standards, making it a reliable choice for your automation needs.
Specifications
- Operating Voltage
- 10-30 V DC
- Sensing Range
- 1-5 mm
- Non-linearity Max
- ±120 µm
- Dimension
- Ø 18 x 44.5 mm
- Installation
- Flush mounting
- Housing Material
- Nickel-plated Brass
- Approval/Conformity
- CE, cULus, EAC, WEEE
- Style
- M18x1
OutputAnalog, current 4-20 mA
Repeat Accuracy±8 µm
Ambient Temperature-10 to 70 °C
ConnectionConnector, M12x1-Male, 3-pin, A-coded
Material Sensing SurfacePBT
IP RatingIP67
Output Characteristicfalling on approach
Surface ProtectionNickel plated
