Balluff BAW M18ME-UAC50B-BP01,5-GS04 Inductive distance sensors BAW M18ME-UAC50B-BP01,5-GS04
- MPN: BAW M18ME-UAC50B-BP01,5-GS04
- PPN: BAL-BAW0021
CAD
$472.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

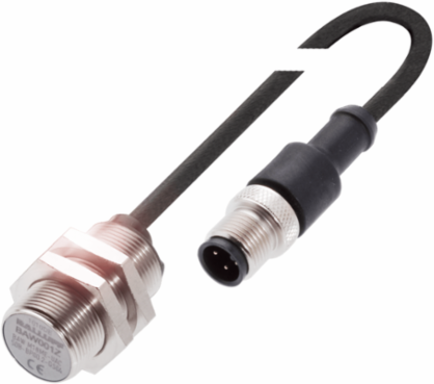

Inductive distance sensors BAW M18ME-UAC50B-BP01,5-GS04
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 18 x 36 mm
- Installation
- for flush mounting
- Analog output
- Analog, voltage 0-10 V
- Repeat accuracy
- ±8 µm
- Housing material
- Brass
- Material sensing surface
- PBT
- Operating voltage Ub
- 15-30 VDC
- IP rating
- IP67
StyleM18x1
Range1-5 mm
Output characteristicfalling on approach
Non-linearity max.±120 µm
Surface protectionnickel plated
ConnectionCable with connector, M12x1-Male, 3-pin, 1.50 m, PUR
Ambient temperature-10-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
