Balluff

Balluff BES M12EG1-POC20S-S04G-S Inductive full-metal sensors BES M12EG1-POC20S-S04G-S

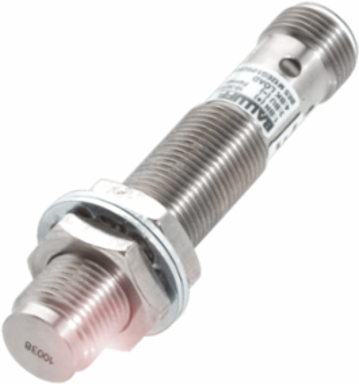

Inductive full-metal sensors BES M12EG1-POC20S-S04G-S
  • MPN: BES M12EG1-POC20S-S04G-S
  • PPN: BAL-BES02Z1

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$220.31/ EA

Description

Balluff's especially resistant stainless steel inductive sensors are custom developed for use in very harsh environments. Housing and sensor front manufactured from stainless steel. The robust active surface is resistant to impacts as well as mechanical stresses and abrasive media.

Specifications

Specifications

Dimension
Ø 12 x 65 mm
Installation
for flush mounting
Switching output
PNP Normally closed (NC)
Housing material
Stainless steel
Connection
Connector, M12x1-Male, 4-pin
Ambient temperature
-40-70 °C
Approval/Conformity
CE, EAC, cULus, WEEE
StyleM12x1
Range2 mm
Switching frequency100 Hz
Material sensing surfaceStainless steel
Operating voltage Ub10-30 VDC
IP ratingIP67
Additional featuresSelective ferrous
