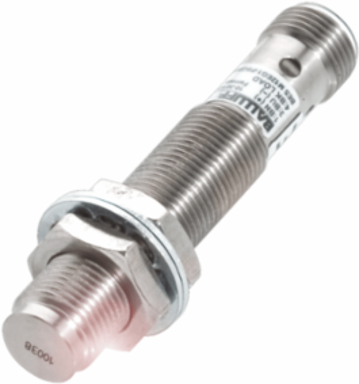

Balluff BES M12EG1-PSC20S-S04G-S Inductive full-metal sensors BES M12EG1-PSC20S-S04G-S
- MPN: BES M12EG1-PSC20S-S04G-S
- PPN: BAL-BES02Z3
CAD
$223.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Balluff's especially resistant stainless steel inductive sensors are custom developed for use in very harsh environments. Housing and sensor front manufactured from stainless steel. The robust active surface is resistant to impacts as well as mechanical stresses and abrasive media.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 65 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, EAC, WEEE
StyleM12x1
Range2 mm
Switching frequency100 Hz
Material sensing surfaceStainless steel
Operating voltage Ub10-30 VDC
IP ratingIP67
Additional featuresSelective ferrous
