Balluff

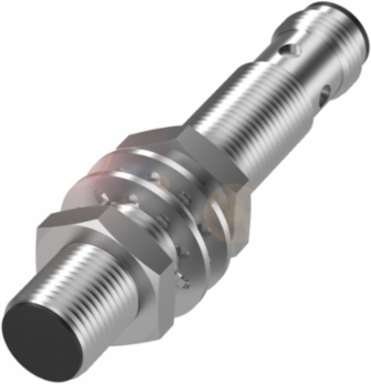

Balluff BES 516-325-S4-C Inductive Sensor Ø 12 x 70 mm, IP68, Stainless Steel, 10-30 VDC

Inductive Sensor Ø 12 x 70 mm, IP68, Stainless Steel, 10-30 VDC
  • MPN: BES 516-325-S4-C
  • PPN: BAL-BES01C8

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$140.64/ EA

Description

Designed for precision and reliability, these inductive standard sensors from Balluff are ideal for various automation and control applications. With an operating voltage range of 10-30 VDC and a robust IP68 rating, they are built to withstand harsh environments, making them suitable for flush mounting in diverse industrial settings. The sensors feature a compact stainless steel housing and can operate effectively in temperatures ranging from -40 to 85 °C, ensuring durability and consistent performance. With a switching frequency of up to 3500 Hz and a sensing range of 2 mm, these PNP normally open sensors provide efficient and accurate detection, backed by CE, cULus, EAC, and WEEE approvals for added peace of mind.

Specifications

Operating Voltage
10-30 VDC
Switching Frequency
3500 Hz
Range
2 mm
Size
Ø 12 x 70 mm
Installation
Flush mounting
Material
Stainless steel, PBT
IP RatingIP68
Switching OutputPNP Normally open (NO)
Ambient Temperature-40 to 85 °C
Thread SizeM12x1
ConnectionConnector, M12x1-Male, 4-pin
Approval/ConformityCE, cULus, EAC, WEEE
