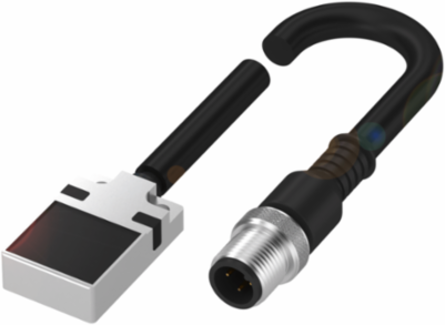

Inductive standard sensors with preferred types BES R01ZC-PAC70B-BP00.2-GS04-107
Balluff

Balluff BES R01ZC-PAC70B-BP00.2-GS04-107 Inductive standard sensors with preferred types BES R01ZC-PAC70B-BP00.2-GS04-107

  • MPN: BES R01ZC-PAC70B-BP00.2-GS04-107
  • PPN: BAL-BES0314

CAD

$377.33

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
32 x 20 x 8 mm
Installation
for flush mounting
Switching output
PNP NO/NC
Housing material
Zinc, Die casting
Connection
Cable with connector, M12x1-Male, 4-pin, 0.20 m, PUR
Ambient temperature
-25-70 °C
Approval/Conformity
CE, cULus, EAC, WEEE
Style32x20x8
Range7 mm
Switching frequency150 Hz
Material sensing surfaceceramic coated
Operating voltage Ub10-30 VDC
IP ratingIP67
