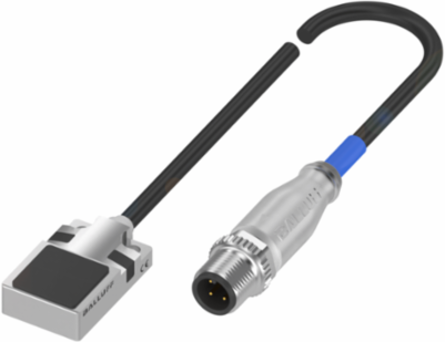

Balluff BES R01ZC-PSC50B-BS00,3-GS04-W52 Inductive standard sensors with preferred types BES R01ZC-PSC50B-BS00,3-GS04-W52
Balluff BES R01ZC-PSC50B-BS00,3-GS04-W52 Inductive standard sensors with preferred types BES R01ZC-PSC50B-BS00,3-GS04-W52
- MPN: BES R01ZC-PSC50B-BS00,3-GS04-W52
- PPN: BAL-BES05K5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$552.92/ EA
Description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
Specifications
Specifications
- Dimension
- 32 x 20 x 8 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Zinc, Die casting
- Connection
- Cable with connector, M12x1-Male, 3-pin, 0.30 m, Silicone
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
Style32x20x8
Range5 mm
Switching frequency100 Hz
Material sensing surfaceFortron 6165 A6
Operating voltage Ub10-30 VDC
IP ratingIP67
