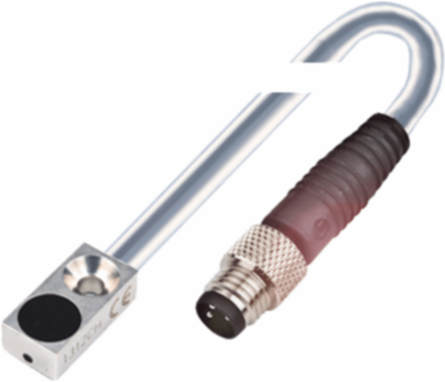

Balluff BES R04MC-PSC20B-EP00,2-GS49-107 Inductive standard sensors with preferred types BES R04MC-PSC20B-EP00,2-GS49-107
Balluff BES R04MC-PSC20B-EP00,2-GS49-107 Inductive standard sensors with preferred types BES R04MC-PSC20B-EP00,2-GS49-107
- MPN: BES R04MC-PSC20B-EP00,2-GS49-107
- PPN: BAL-BES049E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$271.44/ EA
Description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
Specifications
Specifications
- Dimension
- 16 x 8 x 4.7 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Brass
- Connection
- Cable with connector, M8x1-Male, 3-pin, 0.20 m, Silicone
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
Style16x8x4.7
Range2 mm
Switching frequency5000 Hz
Material sensing surfaceCeramic
Operating voltage Ub10-30 VDC
IP ratingIP67
Downloads
Similar Products
CAD$271.44/ EA
Loading add to cart quantity...
