Inductive standard sensors with preferred types BES R04MC-PSC20B-EP00,36-GS04
Balluff

Balluff BES R04MC-PSC20B-EP00,36-GS04 Inductive standard sensors with preferred types BES R04MC-PSC20B-EP00,36-GS04

  • MPN: BES R04MC-PSC20B-EP00,36-GS04
  • PPN: BAL-BES04EU

CAD

$208.72

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

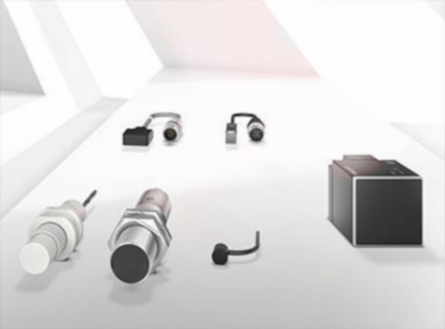

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Additional

Operating Voltage Range
10-30 VDC
Rated Operating Distance
2 mm
Ambient Temperature Range
-25 to 70 °C
Connection
M12x1-Male, 4-pin, cable with connector, PUR jacket
Installation
Flush mounting
Material Sensing Surface
PBT
Protection Rating
IP67
Switching Frequency5000 Hz
Output TypePNP Normally open (NO)
Cable Length0.36 m
Dimension16 x 8 x 4.7 mm
Housing MaterialBrass, nickel-free coated
Cable Diameter2.5 mm
Approval/ConformityCE, cULus, EAC, WEEE
