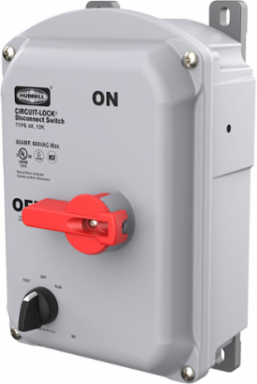

Hubbell Wiring Device-Kellems HBLDS60TJ Industrial Motor Disconnect Switch, 3 Pole, 60A, 600V AC, IP69k, NEMA Type 4X
- MPN: HBLDS60TJ
- UPC: 783585763705
- PPN: HBL-HBLDS60TJ
- UNSPSC: 39121521
CAD
$1171.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications With Jog, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure has a single flat for top feed applications and supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
- Factory installed Hold, Off, Auto jog switch for increased safety and point of use communication to PLC
- Jog Switch
Specifications
Key Specifications
- Country of Origin
- Poland
- Current / Amperage Rating
- 60 A
- Height
- 5.94 in
- Hub Size
- 1/ 1/4"
- Ingress Protection
- IP69k, NEMA Type 4X, 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Non-Metallic - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Enclosure Type
- IP69k and UL Type 4X, 12
- Standard
- cULus Listed
- Weight
- 3.363 lb.
- Dielectric Strength
- Withstands 3000V AC minimum
- Operating Cycles
- 10,000 Cycles Minimum
- Shape
- Rounded Top
- Wire Size
- #2 to #10 AWG
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Stainless Steel Screw Mounting
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585763705
ColorGray
Description - SlangIndustrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure for Top Feed Applications With Jog
Horsepower - Maximum50
Industry Standard(s)cULus Listed
Mounting MethodExternal fully adjustable feet
ApplicationHeavy Duty Industrial and/or Washdown
Special FeaturesJog Switch
TypeDisconnect Switches
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
Environmental ConditionsIndoor and Outdoor
Operating TemperatureWithout Impact Maximum continuous 75°C and minimum -40 °C
StyleHeavy Duty
Class CodeA16
Harmonization Code8536509025
Sub Class CodeA16A260
SeriesNon-Fused
BOX SIZE(in)
