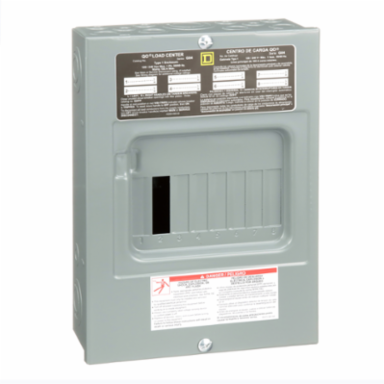

Square D QO816L100TS Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, gnd bar, surface cover, CSA
Square D QO816L100TS Load center, QO, 1 phase, 8 spaces, 16 circuits, 100A fixed main lugs, NEMA1, gnd bar, surface cover, CSA
- MPN: QO816L100TS
- UPC: 785901804406
- PPN: SCH-QO816L100TS
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$241.40/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 8 spaces and 16 circuits. This system provides 100A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, surface cover, and is CSA rated. QO load center is UL Listed and CSA approved by UL.
Specifications
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212002
- Eu Rohs Directive
- Compliant with Exemptions
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 319 mm
- Number Of Tandem Circuit Breakers
- 8
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Surface Finish
- baked enamel grey
- Enclosure Material
- welded sheet steel
- Width
- 226 mm
- Electrical Connection
- lugs
- Number Of Spaces
- 8
- Device Composition
- grounding bar (factory installed)
- Box Number
- 4
Short-Circuit Current10 kA
Tightening Torquemain lugs 50 lb.in, AWG 8, aluminum/copper || main lugs 50 lb.in, AWG 6...AWG 1/0, aluminum/copper
Materialtin plated aluminum: busbar
[In] Rated Current100 A
Awg GaugeAWG 4...AWG 1 aluminum/copper
Wiring Configuration3-wire
Number Of Circuits16
Loadcentre TypeFixed Mains (lugs)
Network Number Of Phases1 phase
Specifications
- Cover Type
- surface cover
- Product Or Component Type
- Loadcentre
Range Of ProductQO
