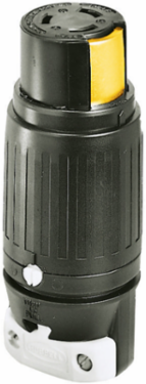

Bryant 7764 Industrial Female Connector Body, 50A 250V DC/600V AC, 3-Pole, Non-NEMA, Screw Terminal
- MPN: 7764
- UPC: 781786629882
- PPN: HBL-7764
- UNSPSC: 39121421
CAD
$393.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Female Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
Features
- Female Connector Body
- 50A 250V DC/600V AC
- 3-Pole 4-Wire Grounding
- Non-NEMA
- Screw Terminal
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.56 in
- Amperage Rating
- 50 A
- Color
- Black
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Conductors
- 4-Wire Grounding
- Size
- 6.50 in x 2.56 in x 2.56 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 250 VDC/600 VAC
- Width
- 2.56 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Extra Heavy Duty
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7764N
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 50 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.15 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70781786629881
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions6.50 in x 2.56 in x 2.56 in
Length6.50 in
ApplicationHeavy Duty Industrial
Conductor Range#6 AWG
InsulationInsulated Body
Number of Poles3-Pole
Special FeaturesStandard Product
TypeConnector Body
Voltage Rating Description250 VDC/600 VAC
ConnectivityPressure Terminal Screws
Number Of Conductors4-Wire Grounding
Number Of Wires4-Wire
Wire Size#18 AWG to #8 AWG
Description - InvoiceLKG CONN, 3P4W, 50A 250/600V, 77 SER
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A171
Cord Diameter0.830-1.250 in
MaterialComposite
BOX SIZE8.200x12.500x9.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786629882
Case Weight11.600 lb.
Lowest Level UOMEach
Pallet Height41.000 in
Pallet Weight940.000 lb.
Certifications
- EU RoHS Indicator
- No
